Overview

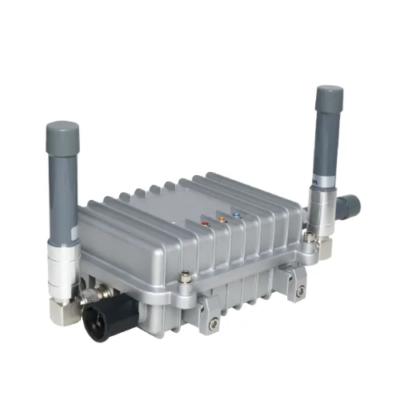

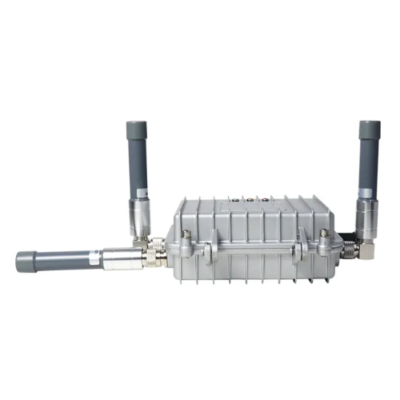

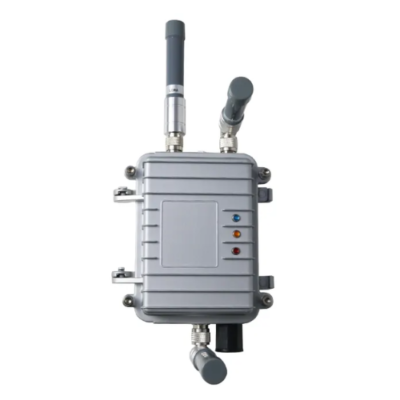

The Inventory Master smart city industrial lorawan gateway serves as a base station for the LoRaWAN network, enabling bidirectional communication. It’s rugged, programmable, and offers protection against dust and water, making it suitable for outdoor or industrial indoor conditions. It supports Wi-Fi 2.4G / 5G, Bluetooth5.2, and GPS. Additionally, it allows developers to build custom firmware with comprehensive guidance and support.
Features
- BLE 5.2
- Wi-Fi 2.4G / 5G
- LoRaWAN
- GPS
Technical Specifications
| CPU | PX 30 Quad-core Cortex-A35 |
| LoRa Concentrator | Semtech x 1302 |
| RAM | Up to 2 GB |
| ROM | MMC Up to 128 GB |
| System | Linux |
| Power Supply Port | Support DC input Voltage range is 4.5 V to 5 V |
| Reset Button | Located inside the gateway. Pressing the reset button for more than 5 sec restores Wi-Fi unit to factory settings |
| Network Interface | CAT-5 / CAT-SE for data transmission and POE Power Supply (voltage range is 44 V to 57 V). WAN/LAN variable |
| Operating Temperature | 50 °F to 158 °F (10 °C to 70 °C) |
| Waterproof Level | IP 66 |
| Current | 350 mA at 5 V |
