The Inventory Master TCP 13.56 MHz RFID QR Code Reader with High Resolution – The Inventory Master

RFID and QR code reader with versatile communication methods. Fast reading speed, wide distance range, and operates in various environments.

SKU: TIMHF-3220 Category:

Overview

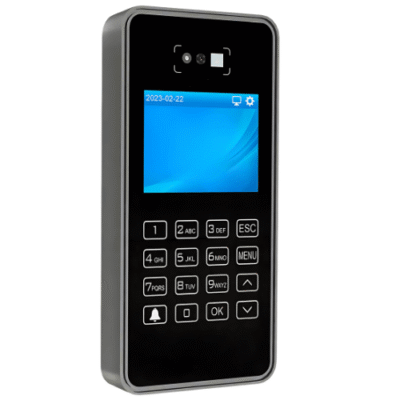

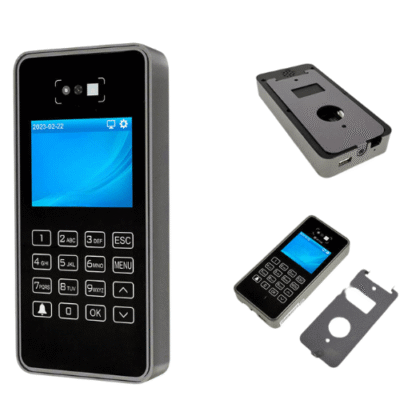

This TCP RFID Keypad Access Control Card Reader has a frequency of 13.56 MHz, a dimension of 165×80×25mm and an operating temperature of 0℃ to 45℃.



Technical Specifications

Frequency13.56 MHz
Screen2.8 Inch Color Screen
Input ModeTouch keyboard
Operation SystemLINUX 4.19
CPU,NPUARM Cortex-A7 800M, 800G（0.8T）
RAM256MB DDR3
ROMEMMC Flash 4GB
Logs Capacity500000
VerificationQR code, password, ID Card (IC card optional)
QR Code FunctionSupport dynamic QR code, Card QR code, Visitor QR code
QR Code Capacity100,000
Card Capacity5000, ID Card Standard, IC Card Optional
Password Capacity5000
USBUSB2.0 x 1 ，Support U disk import/export data
Power SupplyDC12V 2A
Network CommunicationTCP/IP, USB type A, WIFI (optional)
Size165×80×25mm
Working Temperature0℃ to 45℃
Working Humidity20%～90%
