Overview

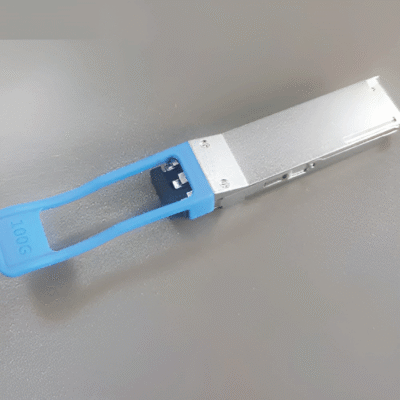

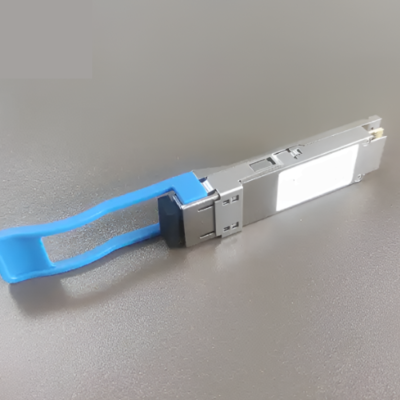

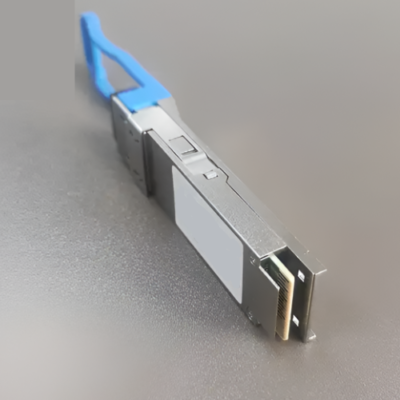

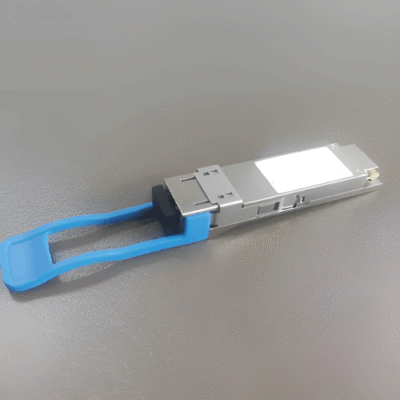

The Inventory Master transceiver has integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4-Distributed Feedback Laser (DFB) with centre wavelength of 1296 nm, 1300 nm, 1305 nm and 1309 nm. The optical signals are multiplexed to a single –mode fibre through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a PIN photodetector and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and MDIO management interface.
Features
- 100 GBASE-LR 4 compliant
- Line rates: 103.125 Gbps to 111.81 Gbps
- Integrated LAN WDM TOSA or ROSA for 6.21 lb (10 km) reach
- Digital Diagnostics Monitoring Interface
- Duplex LC optical receptacle
- No external reference clock required
- Electrically hot-pluggable
- MSA compliant with LC connector
Technical Specifications
| Wavelength | 1310 nm |
| Data Rate | 100 G |
| Distance | 6.21 mi (10 km) |
| Connector | LC |
| Fiber Type | QSFP 28 |
| Warranty | 1-Year |
| Time of delivery | 3 to 7 days |
| Package | 1 pc |
| Commercial temperature | 32 °F to 158 °F (0 °C to 70 °C) |
