Overview

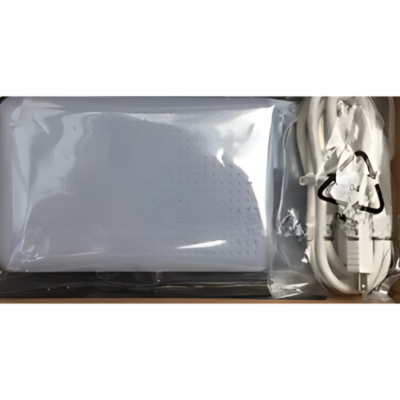

The Inventory Master UHF Reader with USB Interface Access Control is a new and innovative antenna built-in integrated RFID desk Reader or writer that is compatible with IS018000 and EPC Class 1 Gen2 of RFID tags. This RFID Reader’s designed as USB interface which is convenient for customer use. This product is widely used for the logistics industry, parking systems etc.
Technical Specifications
| Working Frequency | ISM 902 MHz to 928 MHz, available to customize 860 MHz to 960 MHz |
| Support Protocol | ISO18000-6B or ISO18000-6C or EPC Class1G2 |
| Working Mode | FHSS or working mode of fixed frequency pulse transmitting, set by software. |
| Transmit Power | 0 dBm to 10 dBm (adjust by software) |
| Read Speed | The average read time for single card is less than 6ms per 64 bits |
| Interface | USB virtual keyboard or USB virtual serial port |
| Data Output | Wiegand 26 or 34 port, RS 232, RS 485, TCP or IP (customize), CANBUS (customize) |
| Data Input | One group of triggering input signal |
| Antenna | Built-in, 2 dBi circularly polarized antenna |
| Power Supply | Adapter (+ 9 V to + 12 V DC) |
| Power Consumption | Less than 6 W |
| Software | Sdk & Demo for Free |
| Application | Hospital, Library, Company, Bank, Store |
| Parameter | RM 9003 |
| Writing Range | 0.66 ft (0.2 m) MAX (Depends on reading condition and tags) |
| Read Distance | 1.64 ft (0.5 m) MAX (Depends on reading condition and tags) |
| SDK | API and C# sample |
| Working Temp | -4 °F to + 131 °F (- 20 ºC to + 55 ºC) |
| Dimension | 5.12 in x 3.35 in x 0.47 in (130 mm × 85 mm × 12 mm) |
| Weight | 3.52 oz (100 g) |
