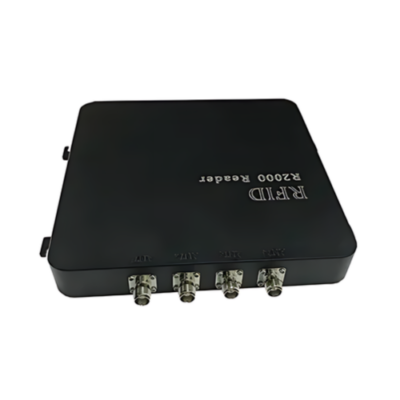

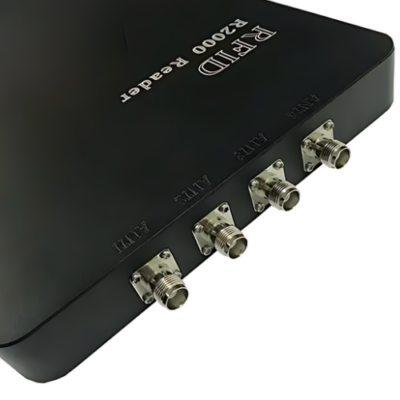

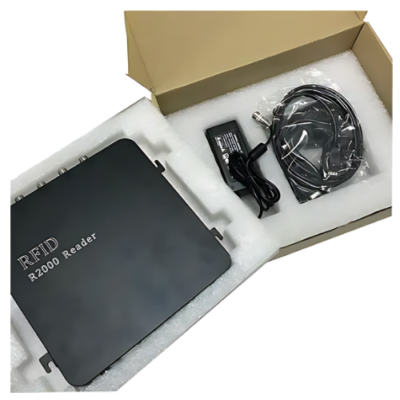

The Inventory Master Warehouse Inventory Management Long Range UHF RFID Fixed Reader– With The Frequency From 865 MHz To 908 MHz

Streamline your warehouse operations with our Long-Range UHF RFID Fixed Reader. Achieve efficient inventory management at an unbeatable price.

SKU: TIMUHF-886 Category:

Technical Specifications

Frequency902MHz to 908MHz or 865MHz to 868MHz or customize other frequency
ProtocolISO18000-6C (EPC gen2) and ISO18000-6B
Receive Sensitivity<-85 dBm
Reading SpeedMulti tag 700pcs per s,single tag 2000times per min
Max Bandrate115200bps
DataStandard: RS232,RS485,Wiegand26 or 34,RJ45(optional)
Data Input PortTrigger input one team, Anti-collision and multi-reading
Communication PortsRS232,RJ45(TCP or IP)
GPIO2 inputs optical coupling 2 outputs optical coupling
AntennaExternal connect different gain antenna
Tag Buffer Capacity1000 tags at 96 bit EPC
Peak Inventory Speed>700 tags per s
Reading ClueBuzzer and LED
AntennaExternal connect antenna
Power SupplyDC 9V per 12V
Reading RangeMore than39.37 ft (12m),related to external antenna
Operation Temp-4 °F to 131 °F (-20 ℃ to +55 ℃)
Dimension8.27 in x 7.87 in x 1.18 in
(210 mm x 200 mm x 30 mm)
Weight3.97 lb(1.8 kg)
