Overview

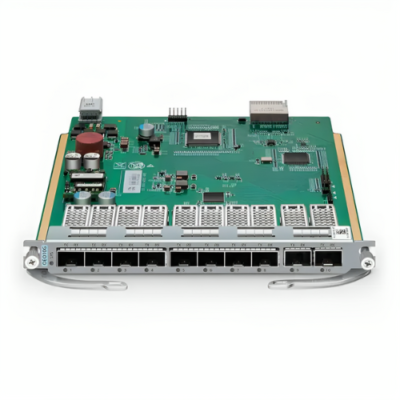

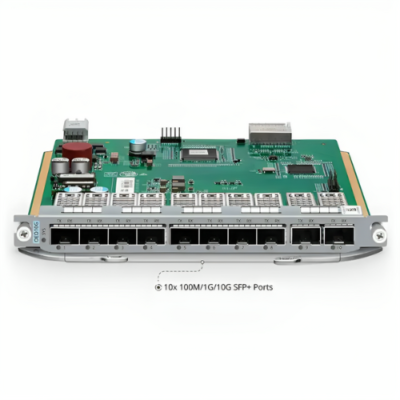

The Inventory Master WDM transponder has 10 SFP or SFP+ slots and it can support multiple protocols such as 100 Mbps to 10 Gbps Ethernet, 1 G to 10 G FC, SONET or SDH, OTU2 or 2e, SDI, HD-SDI, CPRI, etc. over common fiber optical networks. It is designed for wavelength conversion, distance extension and optical signal repeat, and widely used in Metro, Regional and Long Haul WDM optical networks.
Features
- Transport 100 M to 11.1 G Ethernet
- SDH STM-1 or 4 or 16 or 64, 1 or 2 or 4 or 8 or 10 G Fiber Channel, etc.
- Support 1+1 Facility Protection
- Support Standard MSA Pluggable SFP and SFP+
- Remote Management with WEB
- Applied for Metro 10 Gigabit Ethernet Connectivity
- Cable Landing Service Extension
- Functions as a Fiber Mode Converter
- CWDM or DWDM Transponder
- Fiber Repeater
- 5 Independent ITU Standard-based WDM Transponder
Technical Specifications
| Transmission Speed | 100 Mbps to 11.1 Gbps |
| Interface Type | SFP or SFP+ |
| Transceiver Slot Number | 10 |
| Service Channel Number | 5 |
| Power Consumption | < 15 W |
| Latency | < 1.8 us |
| Automatic Laser Shutdown (ALS) | Supported |
| Digital Diagnostic Monitoring (DDM) | Supported |
| MTBF | > 140127 hr. |

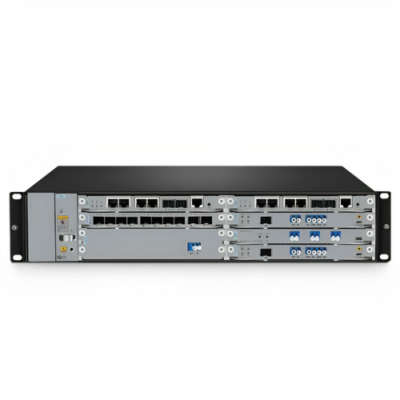

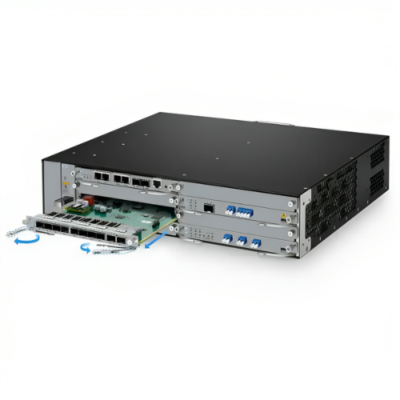

| Housing | Pluggable Module (Occupies 1 slot in M 6200 WDM Network managed chassis) |
| Operation Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
