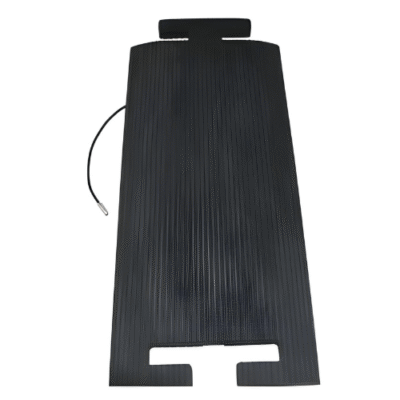

UHF RFID 9 dBi Mat Antenna, Circular Polarization, Race Timing Systems – The Inventory Master

Experience superior RFID performance with 9 dBi mat antenna. Designed for race timing systems, it features a robust 100W power rating, and wide beam widths.

SKU: TIMANT-208 Category:

Technical Specifications

Gain9 dBi
Frequency902-928MHz
ProtocolISO 18000-6C
PolarizationCircular
Beam WidthHor:80° Ver:40°
VSWR≤1.5
Maximum Power100 W
ConnectorSMA-Female
F/B Ratio≥20
Impedance50Ω
Lightning ProtectionDC Ground
Dimension47.24 in X 19.68 in X 1.57 in (1200 mm X 500 mm X 40 mm
Weight8.37 lb (3.7 kg)
Operating Temperature-4 F To 140 F (-20℃ To 60 ℃)
