Overview

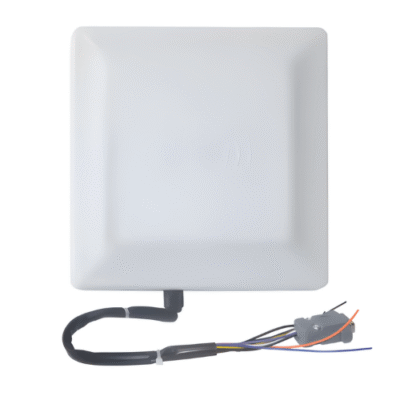

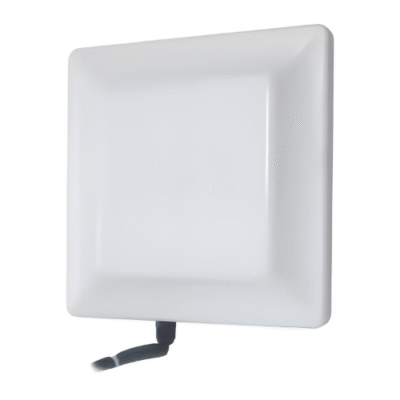

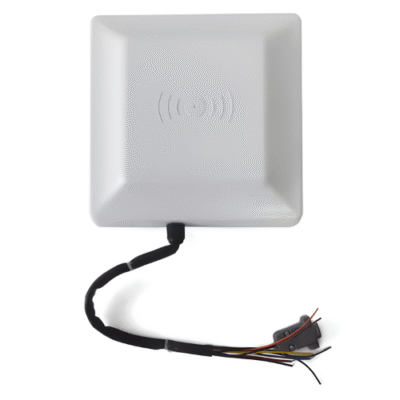

The Inventory Master Short Range RFID Reader single tag UHF has the capability of Reading or Writing agreement of ISO18000-6B, EPC Passive tags, and software programmable. Able to decode ISO-18000B, EPC. Reading Range (Max) 16.40 ft (5 m) Reading. Free SDK and configuration software shapes.
Technical Specifications
| Frequency | 902 MHz to 928 MHz |
| Protocol | ISO18000-6B, EPC Passive tags |
| Antenna | Circular polarization antenna |
| Operation Mode | Fixed Frequency or FHSS or Software Programmable |
| Power Output Adjustable | Power Output Adjustable Range: 0.1 W to 1 W |
| Interface | RS232, RS485, Wiegan 26 |
| Highest Data Read Rates | One by one single card |
| Communication Rates | Up to 57600 bps and software programmable |
| Read Distance | 6.56 ft to 16.40 ft (2 m to 5 m) |
| Read Range | 0 ft to 16.40 ft (0 m to 5 m) |
| Dimension | 8.66 in x 8.66 in x 1.97 in (220 mm x 220 mm x 50 mm) |
| Weight | 8.814 lb (4 kg) |
