Overview

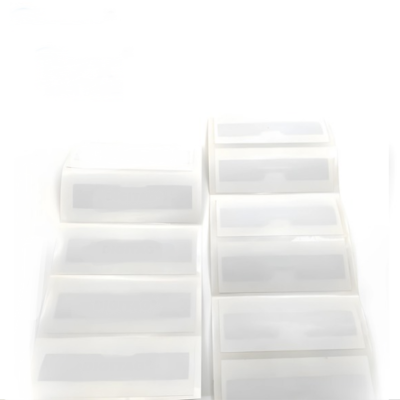

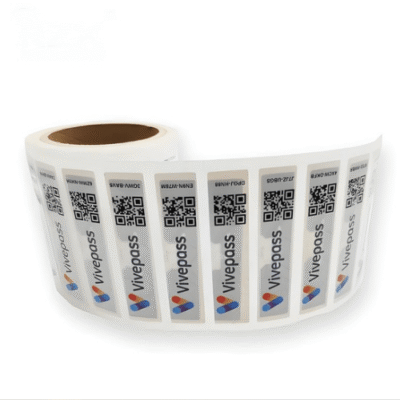

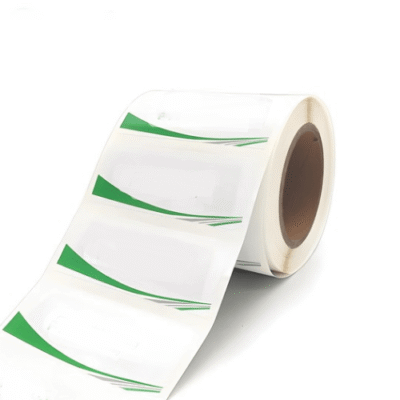

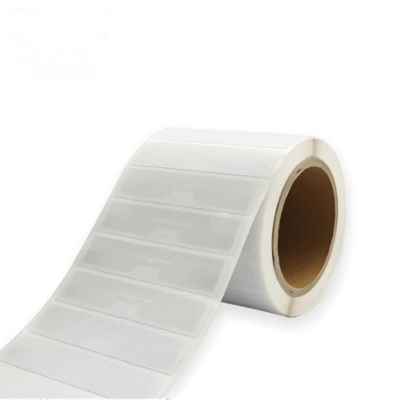

The Inventory Master Windshield Sticker UHF Vehicle Label Tag RFID is designed for automatic vehicle identification applications, such as electronic toll collection, electronic vehicle registration or parking, security access, and fleet management. RFID (Radio Frequency Identification) technology provides simplicity for Logistics, Identification, Assets Tracking, Inventory Management, even in e-payment, E-ticket, etc. with a low-cost paper label tag. With the advance of UHF technology, it is becoming more prosperous in applications in Aviation, healthcare, retail apparel, supply Chain, and even in emerging technologies.
Technical Specifications
| Frequency | 860 MHz to 960 MHz |
| Protocol | ISO181000-6C, EPC G1 G2 |
| Communication Interface | RFID |
| Special Features | Waterproof or Weatherproof, RFID Windshield Sticker, UHF Label, RFID tag uhf parking, RFID Windshield label, RFID windshield tag, RFID vehicle windshield tag, vehicle RFID tag, UHF RFID vehicle tag, RFID windshield sticker |
| Read Range | UHF 3.2 ft to 32.8 ft (1 m to 10 m) |
| IC Life | 100000 Programming cycles, 10 years of data retention |
| Printing | Full Color Printing, Logo, Barcode, QR code |
| Application | Access control, vehicle car management |
| Surface Material | Coated Paper or PET or PVC or PP or customization |
| Working Mode | Passive |
| Application or Solution | Supply chain management, logistics, and distribution product verification, Vehicle management, ETC passway luggage tracking, asset tracking, authentication and serialization, etc. |
| Working Temperature | -4 °F to 176 °F (-20 ℃ to 80 ℃) |
| Operating Temperature or Humidity | -13 °F to 122 °F (-25 ℃ to 50 ℃) or 20 % RH to 80 % RH |
| Storage Temperature or Humidity | -9.4 °F to -0.4 °F (-23 ℃ ± 5 ℃) or 50 % RH ±10 % RH (Without condensation) |
| Label Size | 3.8 in X 0.8 in (97 mm X 22 mm) |
| Antenna Size | 3.6 in X 0.7 in (93 mm X 19 mm) |
