Overview

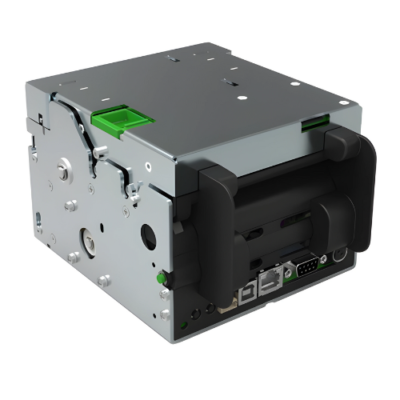

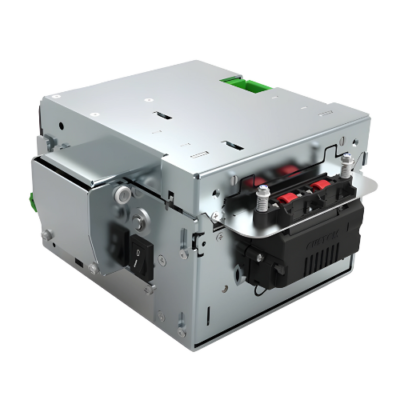

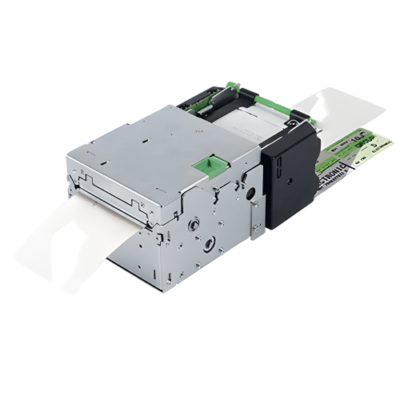

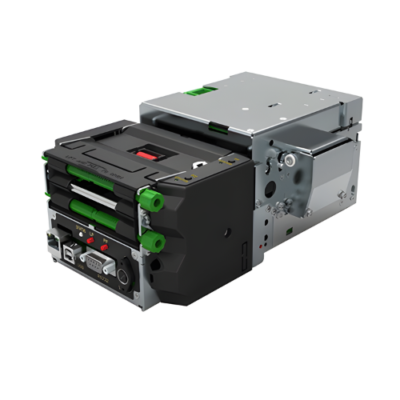

The Inventory Master RFID ticket printer is for oem integration ultra-compact and top-of-the-range ticket printer. Adjustable and versatile paper guides, with dual feeder. It detects black marks and gap without manually adjusting the sensors. Stock control activable with an on-line license. Sturdy and resistant thanks to the metal structure.
Features
- Ticket width from 57 in to 3.3 in (40 mm to 86 mm)
- Ticket thickness from 70 to 255 gsm
- Printing speed 9.84 in (250 mm) per sec
- Fully automated paper loading
- USB or Ethernet or RS232 interface
- 1D or 2D barcode supported
- Easy setting
- No paper wasting
- Manage large paper roll pulling
- Fanfold paper supported
- CUSTOM made RFID HF or UHF
- Printer Set and CPT software
- CIS for notch or gap detection and “stock control” reading
- Cupps-compliant native AEA 2012 support
Technical Specifications
| Printing Method | Thermal with fixed head |
| Number of Dots | 8 dots per mm |
| Resolution | 203 dpi |
| Printing (mm/sec) | 8.66 in (220 mm) per sec (high speed) |
| Printing Format | Height/Width from 1 to 8, bold, reverse, underlined, italic |
| Printing Direction | Normal, 90°, 180°, 270° |
| Paper Width | From 1.57 in to 3.38 in (40 mm to 86 mm) |
| Paper Weight | From 70 to 255 g/m² |
| Paper Thickness | Max 280 μm |
| Roll Dimension | Max 11.8 in (300 mm) |
| Sensors | CIS for notch/gap detection and “stock control” reading |
| Interfaces | RS 232 or USB or Ethernet |
| Flash Memory | 2 MB internal + 8 MB external |
| RAM Memory | 640 KB internal + 8 MB external |
| Drivers | Self-installing Printer Driver – Win7, 8, 8.1, 10 (32 – 64 bit compatible). WHQL certified (only on request). Self-installing USB Virtual RS232 Driver – Win7, 8, 8.1, 10 (32 – 64 bit compatible). WHQL certified (only on request); Linux 32-64 bit compatible; Android, iOS, Windows Phone |
| Software Tools | Printer Set, Custom Power Tool |
| Power Supply | 24 Vdc ± 10% |
| Medium Consumption | 1.12 A (12,5% dots turned on) |
| MCBF | 1.500.000 cuts |
| Operating Temperature | -4 °F to 140 °F (-20 °C + 60 °C) |
| Dimensions | 6.44 in × 3.79 in × 6.0 in (163.8 x 96.5 x 152.5 mm) |
