Overview

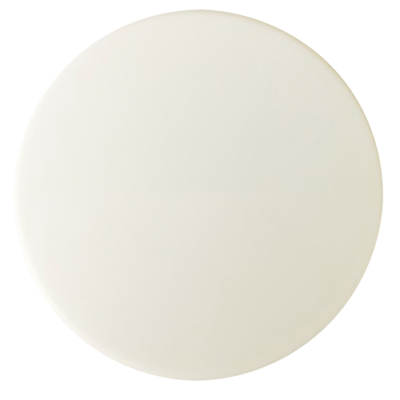

The Inventory Master Ultra Low-Power Bluetooth BLE Beacon with IP68 waterproof rating features a large-capacity 1000 mAh CR2477 battery offering up to 5 years of life. Supporting BLE 4.2 and 5.0, it provides customizable broadcast content, OTA upgrades, and installation via 3M adhesive or screws. It is ideal for asset tracking, indoor navigation, and push notifications, with a broadcast range of 0.062 mi (100 m) in open sight conditions.
Features
- Low power Bluetooth BLE 4.2 Eddystone beacon
- Long lasting with 1000 mAh lithium battery (CR2477)
- IP68 waterproof grade for durability
- Supports over the air (OTA) updates
- Compact size, easy to install
Applications
- Asset Tracking: Ideal for indoor asset management and location tracking
- IoT Systems: Integrates seamlessly with IoT applications for real-time monitoring
- Smart Systems: Used in smart buildings and automated systems for indoor positioning
Technical Specifications
| Broadcast Data Format | IBeacon or customizable |
| Frequency Range | 2400 MHz to 2483.5 MHz |
| Transmit Power | -19.5 dBm to +2.5 dBm (default: 0 dBm) |
| Broadcast Interval | 100 ms to 10 s (default: 500 ms) |
| Receive Sensitivity | -94 dBm |
| Broadcast Distance | 0.062 mi (100 m) (open sight distance) |
| Average Current | 19 µA (0 dBm, 500 ms) |
| Peak Current | 3 mA (0 dBm) |
| Battery Voltage | 3.0 V |
| Battery Capacity | 1000 mAh |
| OTA Support | Yes (connectable type) |
| Working Humidity | 10 % to 90 % (non-condensing) |
| Storage Humidity | 5 % to 90 % (non-condensing) |
| Enclosure | IP 68 |
| Installation | 3 M adhesive or screw |
| Operating Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Dimensions | 1.89 in x 0.67 in (48 mm x 17 mm) |
