Overview

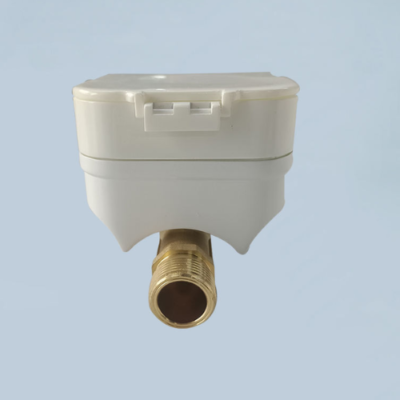

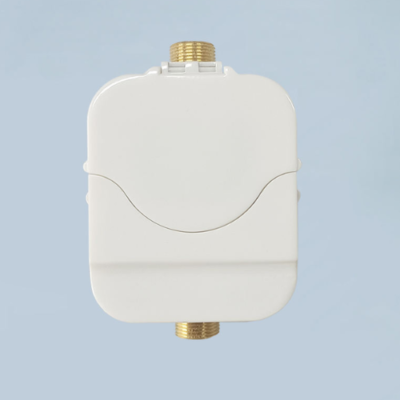

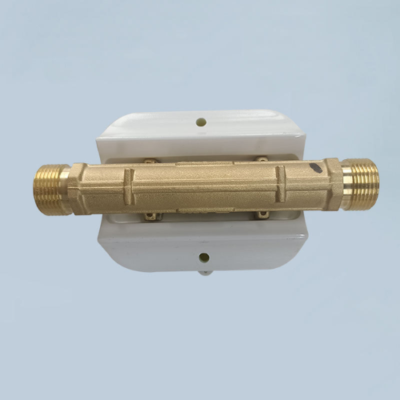

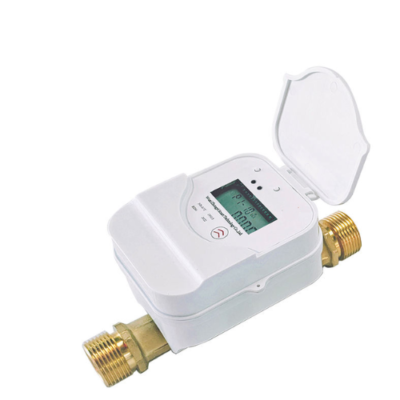

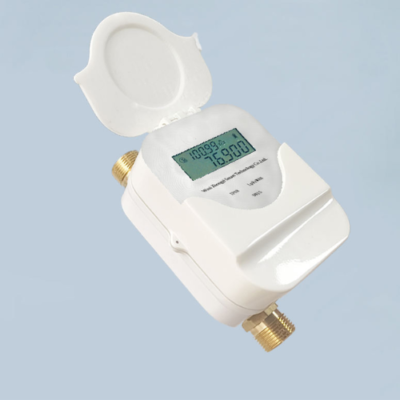

The Inventory Master’s Ultrasonic Water Meter with High Accuracy and Long Life is an intelligent flow meter designed to measure water flow accurately. This device features a sleek design, easy installation, high measurement precision, stable operation, strong anti-pollution and anti-corrosion properties, long service life, and minimal pressure loss. It is suitable for applications such as domestic water usage and central air conditioning system water flow metering.
Features
- Low starting flow rate
- Wide measuring range
- High measurement accuracy
- Stable operation
- No internal moving parts
- Open flow components
- Unaffected by impurities in water
- Long service life
- Good communication
Technical Specifications
| Type | Ultrasonic meter |
| Protection Class | IP68 |
| Nominal Diameter | 15, 20, 25, 32, 40, 50, 65, 80, 100 mm |
| Maximum Flow (Q4) | 3.1 to 125 m³/h |
| Common Flow (Q3) | 2.5 to 100 m³/h |
| Boundary Flow (Q2) | 0.02 to 0.8 m³/h |
| Minimum Flow (Q1) | 0.012 to 0.5 m³/h |
| Maximum Flow Reading | XXXXXXX.X m³ |
| Accuracy Class | 2 |
| Pressure Loss | ≤ 0.063 MPa |
| Maximum Working Pressure (MWP) | 1.6 MPa |
| Temperature Rating | T30 (86 °F) / T50 (122 °F) |
| Temperature Resolution | 0.01 °C |
| Environment Type | B Class (Indoor) |
| Power Supply | 3.6 V |
| Protection Grade | IP65 |
