Overview

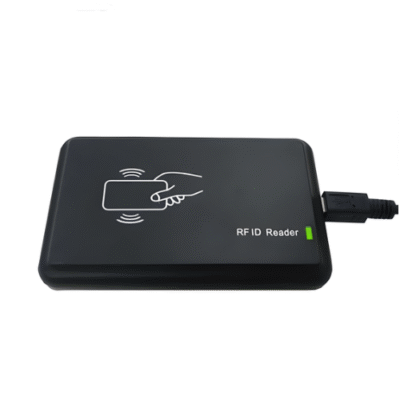

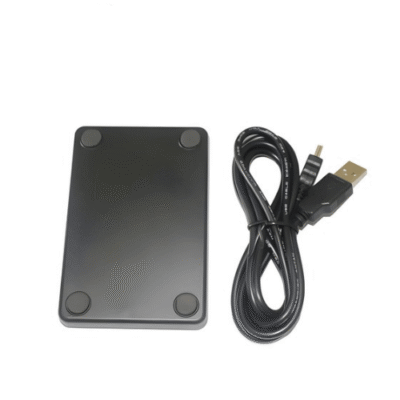

The Inventory Master USB Card Reader EMID 125Khz RFID Card reader Encoder and Dispenser is a 125kHz driver free ID card reading device developed specifically for access control system and public security usage. Plug and play, without additional power supply needed. It is easy to use, the user does not need to install any driver programs, card numbers will be auto displayed when you punch the ID card.
Key Features
- Frequency (125 KHz) Operating frequency of the device
- Protocol (USB) Communication interface for connectivity
- Card Type (125 KHz MHz card) Supported RFID card frequency
- LED Indicates Displays device status
- OEM Accepted Original Equipment Manufacturer customization available
- Dimension (1046810 mm) Physical size specifications
Technical Specifications
| Card Frequency | 125Khz |
| Card Type | TK4100, EM4100, EM4200 |
| Reading ID Card | 0 in to 3.14 in (0 cm to 8 cm) |
| Distance ID Table | 0 in to 0.79 in (0 cm to 2 cm) |
| Cable Length | 4.59 ft (1.4 m) |
| Power | 5 V |
| Weight Net Wgt | 3.53 oz (100 g) With packing：5.29 oz (150 g) |
| Reading Interval | 0.5 S |
| Reading Time | ＜100 mS |
| Reading Speed | 0.2 S |
| Communication | USB |
| Work Current | 100 mA |
| Dimension | 4.094 in × 2.68 in × 0.39 in (104 mm × 68 mm × 10 mm) |
| Operating System | Win XP or Win CE or Win 7 or Win 10 or LIUNX or Vista or Android |
| Others Status Indicator Light | 2-color LED (“red” power LED, “green” status indicator light) Built-in horn: buzzer, can control LED and buzzer Output format: supports customized formats |
