Overview

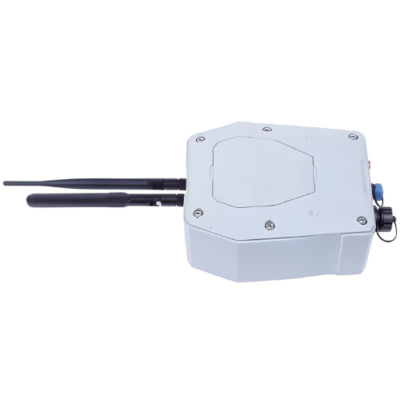

The Inventory Master versatile LoRaWAN outdoor gateway with long-range connectivity IoT (IoT) product series, Sense CAP is focusing on wireless environmental sensing applications: smart agriculture, precision farming, and smart city, to name a few. It consists of hardware products (sensors, data loggers & gateways, etc.), software services (Sense CAP portal, mobile App, open dashboard), and API for device & data management.
Features
- High-performance Cortex A8 1 GHz processor, Linux system
- Support LoRaWAN protocol Class A, support ultra-low-power Sense CAP Sensor
- Support 8 RX, 1 TX transceiver, maximum transmit power 27dBm
- Support multiple ISM bands: CN470, EU868, US915
- Support multiple methods to access the network: 4G, Ethernet
- Ultra-wide-distance transmission: 10 km in line-of-sight scene, 2 km in urban scene
- Industrial grade protection: IP66 enclosure
- Easy deployment and rapid provisioning (see the “how to install” video below)
Technical Specifications
| CPU | TI AM3358 Cortex-A8 1 GHz |
| System | Linux Debian |
| RAM | DDR 3 512 MB |
| Memory | 8 GB eMMC |
| Channel Plan | 902 MHz to 928 MHz |
| LoRa Power Output | 25 dBm |
| LoRa Sensitivity | -139 dBm (SF12 BW125) |
| Ethernet | 100 Mbps FE (RJ-45) |
| 4G Band | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: 850/900/1800/1900 MHz |
| 4G Features | Support non-CA Cat 4 FDD and TDD LTE-FDD: Max 150 Mbps (DL), Max 50 Mbps (UL) LTE-TDD: Max 130 Mbps (DL), Max 30 Mbps (UL) |
| UMTS Features | Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA DC-HSDPA: Max 42 Mbps (DL) HSUPA: Max 5.76 Mbps (UL) WCDMA: Max 384 Kbps (DL), Max 384 Kbps (UL) |
| LoRa Antenna | 2.5 dBi gain / Vertical polarization / Omni-directional / SMA-J connector |
| 4G Antenna | 0 dBi to 4 dBi gain / Linear polarization / Omnidirectional / SMA-J connector |
| LED Indicator | Indicating network condition (online/offline) |
| Grounding | Reserved 1 screw hole for GND |
| Power Consumption | 3.6 W |
| Power Supply | DC 12 V / 2 A |
| IP Rating | IP66 |
| UV Resistance | anti-aging (from rain/sun exposure): UL746C F1 |
| Enclosure Material | PC |
| Operating Humidity | 0 RH to 100 % RH (non-condensing) |
| Installation Method | Wall or pole mounting |
| Device Weight | 27.4 oz (777 g) |
| Device Dimensions | 10.08 in x 6.30 in x 3.19 in (25.6 cm x 16.0 cm x 8.1 cm) |
| Operating Temperature | -40°F to 158°F (-40°C to 70°C) |
