Overview

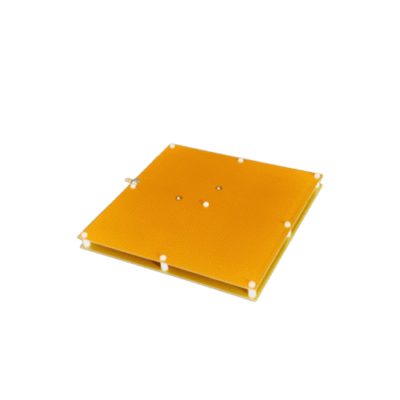

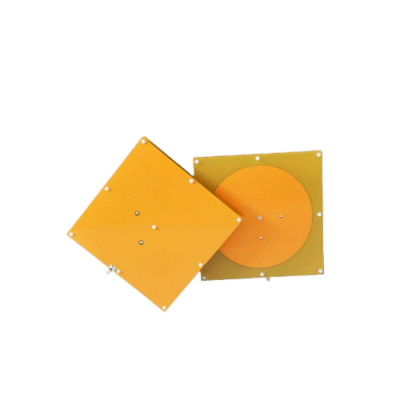

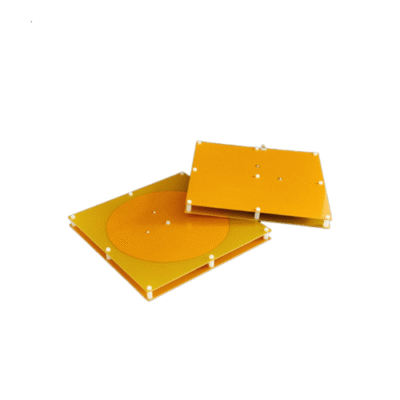

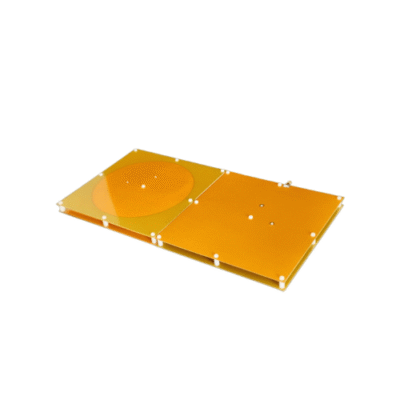

860mhz-960mhz waterproof 8dbi circularly polarized uhf rfid antenna for retail trade management the side feed design is adopted, and the installation is simple. The appearance is beautiful and small, the shell adopts the design of reinforcing ribs and the double waterproof design of waterproof ring and silica gel. Suitable for various harsh environments in UHF band RFID applications.
Features
- Frequency range 860 MHz to 960 MHz
- Voltage standing wave ratio ≤ 1.3 1
- Gain 9 dBic
- H plane HPBW 75 °
- HPBW on plane e 75 °
- Polarization is circular polarization
Technical Specifications
| Frequency Range | 860 MHz to 960 MHz |
| Voltage Standing Wave Ratio | ≤ 1.3: 1 |
| Gain | 9 dBic |
| H Plane HPBW | 75 ° |
| HPBW On Plane E | 75 ° |
| Polarization | circular polarization |
| Ratio Before and After | ≥ 8 dB |
| Input Impedance | 50 Ω |
| Joint Type | SMA 5 K |
| Material | Engineering plastics ASA, aluminum |
| Color | Gold |
| Protection Level | IPX 4 |
| Operating Temperature | – 40 °F to 185 °F (-40 ℃ to + 85 ℃) |
| Storage Temperature | – 40 °F to 185 °F (-40 ℃ to + 85 ℃) |
| Size | 7.48 in x 7.48 in x 0.73 in (190 mm × 190 mm × 18.6 mm) |
| Weight | 1.65 lb (0.75 kg) (excluding bracket) |
