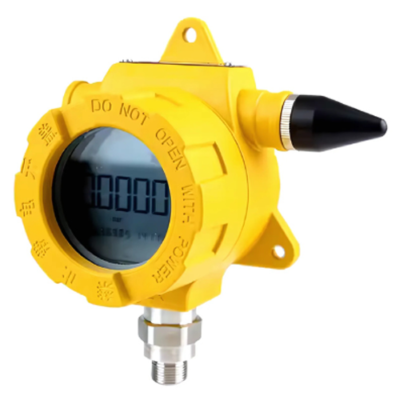

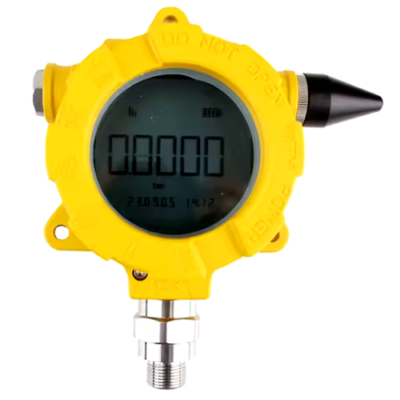

Wireless Pressure Sensor For Smart Monitoring – The Inventory Master
Wireless Pressure Sensor For Smart Monitoring – The Inventory Master
  1. Wireless Pressure Sensor For Smart Monitoring – The Inventory Master
  2. Wireless Pressure Sensor For Smart Monitoring – The Inventory Master

Wireless Pressure Sensor For Smart Monitoring – The Inventory Master

Experience accurate pressure measurement with this sensor, featuring low power consumption and seamless NB-IoT connectivity for smart applications.

SKU: TIMNBED-111 Category:

Technical Specifications

Range-100kpa to 0kPa to 20kPa…100MPa
Power SupplyBattery powered (3.6V,19AH)
Battery Service life6 Years for once data per hour
Data Transmission IntervalAvailable time 2min to 1440min
Power ConsumptionStand-by current≤80uA，Average data sending current≤150mA
Accuracy±0.5%FS
NetworkNB-IOT, 4G optional
Configuration MethodUSB configuration operation, server remote configuration
DisplaySegment LCD screen
Temperature Influence0.015%FS/℃
Wake Up MethodButtons, timing
Relative Humidity0% to 95%
Sensor MaterialSensor diaphragm 316L，shell material: stainless steel
Overload Pressure1.5 Times rated pressure
Protection GradeIP67
Working Temperature-22°F to 158°F (-30℃ to 70℃)
