Overview

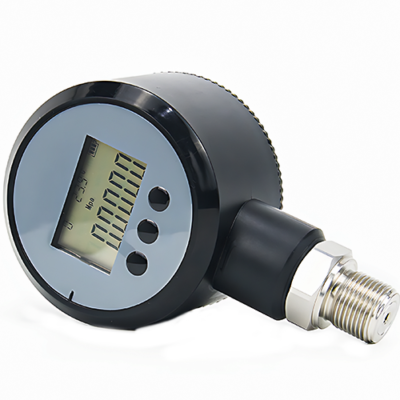

The Inventory Master wireless pressure sensor with led display the digital pressure gauge is mainly composed of a housing, a pressure sensor and a signal processing circuit, and has the advantages of high precision, good corrosion resistance, impact resistance, shock resistance, small temperature drift, and good stability; the micro power processor can be used to continuously Use time.
Technical Specifications
| Type | Pressure data loggers Digital pressure gauges Pressure indicators Digital compound gauges Low-pressure gauges Other Wireless pressure sensor |
| Customized Support | OEM, ODM, OBM |
| Material | SS304 |
| Pressure Range | -0.1 Mpa to 0 MPa & 0 to 100 MPa |
| Power Supply | AAA battery |
| Process Connection | M 20 x 1.5 |
| Display | 5 digits LED |
| Over Load | 1.5 times to 3 times |
| Accuracy | 0.1% FS 0.05 % FS 0.02 % FS 0.01 % FS |
| Communication | 4G or NB-IOT or LoRA or GPRS ect |
| Application | Pressure measurement systems |
| Measurement Range | -0.1 mpa to 100 mpa (selected in range) |
| Display Accuracy | 0.1 ,0.2 ,0.25,0.4 ,0.5 |
| Display Mode | Up to 5 dynamic pressure display |
| Overload Pressure | 1.5 times full |
| Power Supply | Two AAA 7 batteries (3V) |
| Measuring Medium | Water, gas, etc. compatible with stainless steel |
| Operating Humidity | ≤80 % RH |
| Mounting Thread | M 20 X 1.5 (others can be customized) |
| Pressure Type | Gauge or absolute pressure |
| Response Time | ≤50 ms |
| Configuration Methods | Local USB Remote configuration |
| Medium Temperature | -40°F to 158°F (-40℃ to 70℃) |
| Working Temperature | 14°F to 140°F (-10 °C to 60 °C) |
| Size | 100 |
| Weight | 20.46 oz (580 g) |
