Features
- Adopt metal shell with protection grade of IP30
- Support (WCDMA/CDMA/TD-SCDMA), 4G (FDD-LTE/TDD-LTE), 5G (SA/NSA)
- Standard RJ45 (Ethernet) interface built-in lightning protection 3000V
- Industrial wireless dual-frequency high-power CPE
- Software and hardware watchdog anti-crash design
- automatic detection of network disconnection
- Serial port transparent transmission function
- Support multiple DDNS dynamic domain name services
- Port mapping, DMZ host and other functions
- Support VPN (PPTP Client, L2TP Client)
Technical Specifications
| Max. LAN Data Rate | 300 Mbps |
| Wi-Fi Supported Frequency | 2.4G |
| 2.4G Wi-Fi Transmission Rate | 300 Mbps |
| Operating Frequency Band | 2412 MHz To 2472 MHz |
| Standards And Protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n |
| Encryption Type | WPA2-PSK, WPA2, WPA-PSK, WPA |
| LAN Ports | 2 |
| Wi-Fi Transmission Standard | 802.11g |
| Wired Transfer Rate | 10 Mbps Or 100 Mbps Or 1000 Mbps |
| Application | 5G |
| Function | FireWall, VPN |
| WAN Ports | 1 x10 Mbps Or 100 Mbps Or 1000 Mbps |
| Cellular Network | 5G SA Or NSA, FDD To LTE, TDD To LTE, WCDMA, UMTS, GSM, GPRS |
| Power Supply | Standard DC 12V Or 2A, DC Rang: 6 To 36V |
| SIM Card | SIM Card Slot |

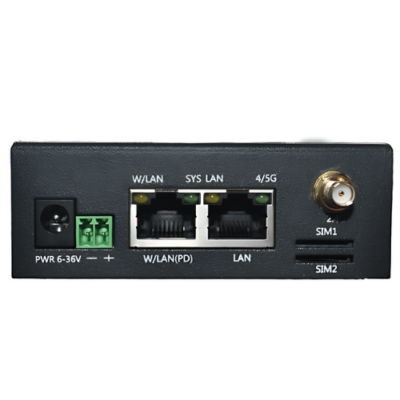

| Interface | 2 x 1000Mbps Ethernet Port,1 x RS232 And RS485 Serial Port |
| Antenna | 4 x 5G Antennas,2 x WiFi Antennas |
| Chipset | Qualcomm |
| Memory | 128MB (On chip) |
| Power Source | DC Power Supply: 6V To 36V Or 3A |
| Power Consumption | Less Than 800mA |
| Ingress Protection Rating | IP30 |
| Operating Temperature | -22 °F To 158 °F (-30 °C to 70 °C) |
| Storage Temperature | -40°F To 185°F (-40 °C to 85 °C) |
| Dimensions | 4.84 in × 3.31 in × 1.18 in (12.3 cm × 8.42 cm × 3 cm) |
