Overview

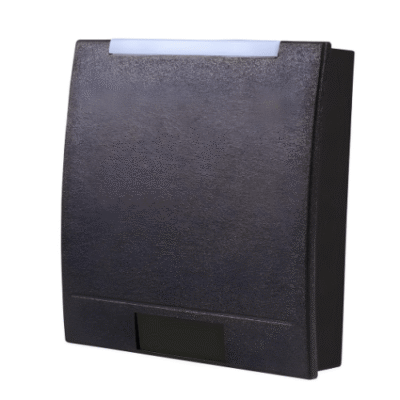

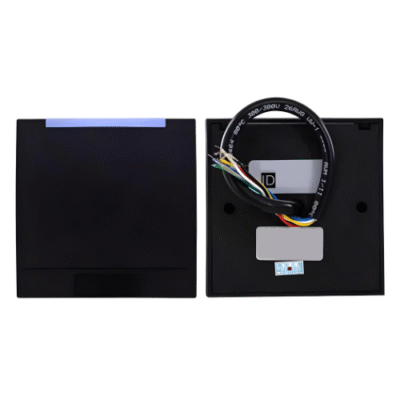

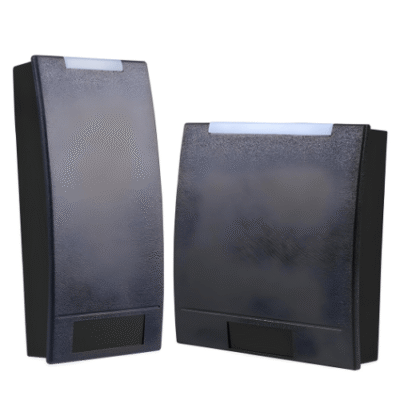

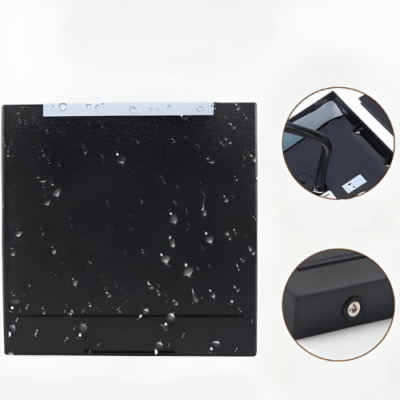

The Inventory Master RFID Reader low frequency proximity modules which is valiable to EM 4100, EM 4200, TK 4100 and compatible cards, With Wiegand 26, 34, RS 232, RS485, interface optional, easy to use and deploy, fast and convenient to connect with other controlling devices Widely used in applications such as access control system, time attendance, guest registration system and identification authentication field etc.
Technical Specifications
| Frequency | 125 KHz |
| Protocol | ISO 14443 A |
| Support Cards | TK 4001 EM 4100 |
| Operating Voltage | DC 9 V to 16 V |
| Consumed Current | <60 mA |
| Reader Interval | <0.5 S |
| Format | Wiegand 26 or Wiegand 34 or RS232 or RS485 (optional) |
| Distance of Transmission | WG 26 or 34< 100 M RS 232<10 M RS 485 < 1200 M |
| Color | Black or White |
| Material | Plastic ABS |
| Reading Distance | 0.0984 ft to 0.2625 ft (3 cm to 8 cm) |
| Card Type | EM Card 125 KHz |
| Communication Interface | Wiegand 26 Wiegand 34 RS232 RS485 |
| Power Supply | 9 V to 16 V |
| Operating Temperature | -13 °F to 167 °F (-25 ℃ to + 75 ℃) |
| Size | 3.31 in X 3.31 in X 0.79 in (84 mm X 84 mm X 20 mm) |
