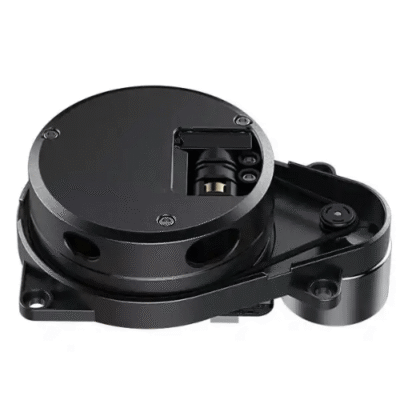

Compact 780nm LiDAR Sensor, 0.4ft to 26.2ft Range, UART Interface – The Inventory Master

This LiDAR sensor offers a measurement range from 0.4 ft to 26.2 ft (0.13 m to 8 m) with 80% reflectance and features a scanning frequency of 6.2 Hz.

SKU: TIMLDS-113 Category:

Features

  1. 360-degree omnidirectional laser scanning
  2. Adopt laser triangulation ranging technology
  3. High speed laser ranging sampling ability up to 5000 times per second
  4. Industrial grade brushless motor
  5. Easy use



Technical Specifications

Measurement0.4 ft to 26.2 ft (0.13 m to 8 m) (80% reflectance)
Sampling2 k/s to 5 k/s
Scanning Frequency6.2 Hz
Angular Resolution1
Laser Wavelength780 nm
Laser Power3 mw
Accuracy1%
Communication InterfaceUART(TTL)
Baud Rate115200 bps
Voltage5 V
Starting Current600 mA
Working Current400 mA
Power Consumption 1.5 w
Laser Class0 to 1
Working Temperature32 °F to 113 °F (0 °C to 45 °C)
Storage Temperature-4 °F to 140 °F (-20 °C to 60 °C)
Dimension4.2 in x 2.95 in x 1.97 in (107 mm 75 mm x 50 mm)
Weight0.4 lb (173 g)
