Overview
Apex is a trusted antenna design partner in Taiwan, specializing in concept-to-completion solutions for a wide range of applications, including industrial, cellular, 5G, automotive, GNSS/GPS, scientific, medical, and more. We leverage our integration expertise and capabilities to design and manufacture custom antenna solutions for a range of wireless and IoT applications, focusing on small multiband and complementary antennas and employing MID/LDS, flex, stamped, and ceramic technologies, among others. We offer a wide range of frequency bands in a variety of package sizes. All of our internal antennas are Halogen-Free and RoHS-compliant. Contact us to request any custom parameters or physical modifications that you may desire and we will design to your specific needs

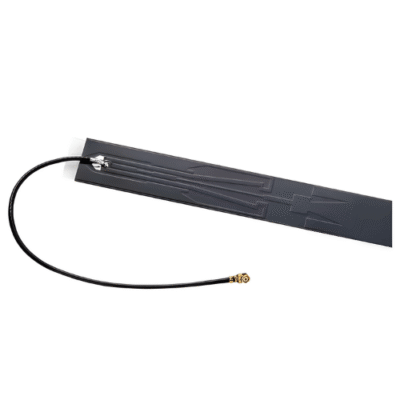

Technical Specifications
| Frequency | 703 MHz to 960 MHz or 1710 MHz to 2690 MHz |
| VSWR | < 4 (free space) |
| Gain | 3 dBi |
| Efficiency | 70 % |
| Polarization | Vertical |
| Impedance | 50 ohms |
| Radiation | Omni-directional |
| Cable Type | 0.04 in (1.13 mm) or 0.05 (1.37 mm) or customized |
| Connector | IPEX plug or others |
| Material | PCB |
| Operating Temperature | -4°F to 149 °F (-20 ℃ to + 65 ℃) |
| Dimension (DxL) | 3.89 in x 0.58 in x 0.03 in (98.4 mm x 14.9 mm x 0.81 mm) |
| Single Package Size | 3.22 in x 0.55 in x 0.39 in (8.2 cm X 1.4 cm X 1 cm) |
| Single Gross Weight | 881.8 oz (0.025 kg) |
| Weight | 0.11 oz (3.3 g) |
