Overview
The Inventory Master Custom Adhesive Printable Passive Anti-Theft RFID uhf Tag has high security, Anti-counterfeiting and Anti-theft. It has multi-tag identification, unchangeable. ID The data can be saved for 10 years, service life up to 100000 times. It can be attached to small metal or metal coated objects, Waterproof and Dustproof.
Technical Specifications
| Communication Interface | RFID |
| Special Features | Waterproof |
| Frequency | 860 MHz to 960 MHz |
| Protocol | ISO or IEC 18000-6C, EPC Class1 Gen2 |
| Chip | UCODE 8 |
| Operating Mode | Passive |
| Data | Store for 10 years |
| Distance | Up to 9.8 ft (3 m) |
| Service Life | 100000 times |
| Service | Printing or information writing |
| Other | Support customization |
| EPC Area | 128 bits |
| TID Area | 96 bits |
| User Area | 0 bits |

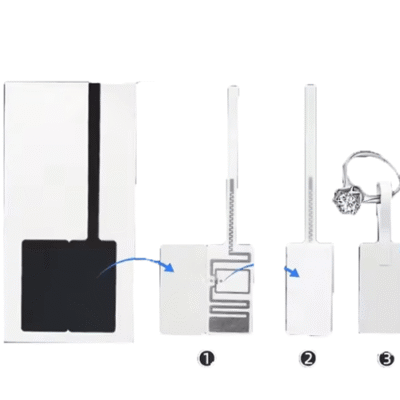

| Installation Method | Hanging and pasting |
| Read And Write Distance | Up to 9.8 ft (3 m) |
| Material Quality | PET |
| Operating Humidity | 20 % RH to 90 % RH |
| Working Temperature | -4 °F to 122 °F (-20 ºC to +50°C) |
| Antenna Size | 0.4 in X 1.6 in (11 mm X 42 mm) |
| Size | 2.6 in X 1.0 in (68 mm X 26 mm) |
