Overview

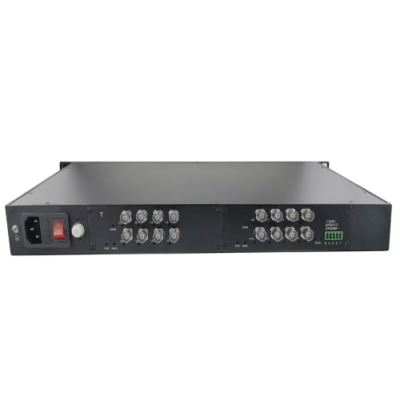

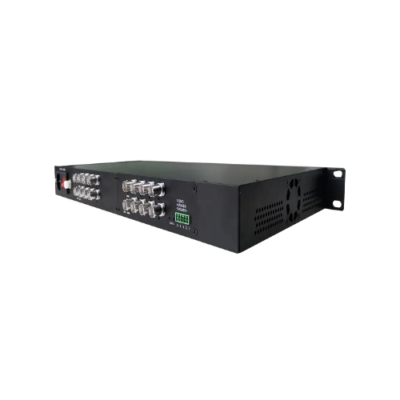

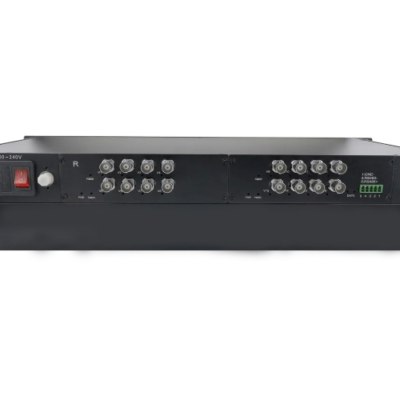

The Inventory Master CVI Fiber Converter adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the HD video composite signals to optical signals to achieve long distance as far as 49.70 mi (80 Km) transmission through fibers.
Features
- Automatically identify formats of input videos
- Transmit 16 channels of video and control data via coaxial cable
- Advanced lightning protection design
- Support 3kv lightning protection
- Single fiber, optional 12.42 mi, 24.85 mi, 37.28 mi, 49.70 mi (20 km, 40 km, 60 km, 80 km) long-distance transmission
- Supports 1280P or 720P, 1920 x 1080P, and 3 or 4 MP camera
- Industrial-grade design, SMT process
- Can provide desktop

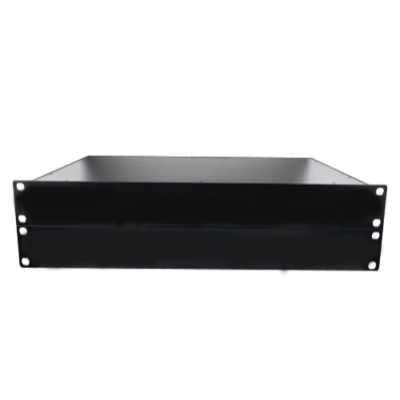

- Centralized card rack-type 2 ways
- Simple installation
Technical Specifications
| Wavelength | 1310 nm & 1470 nm to 1610 nm |
| Fiber Type | Single mode, Single fiber (default) |
| Distance | 0 mi to 49.70 mi (0 km to 80 km) |
| Fiber Interface | FC (default) ST or SC (optional) |
| Video Interface Number | 16 |
| Physical Interface | BNC |
| Video input and output impedance | 75 Ω (unbalanced) |
| Input level | >500 mVp-p |
| Output level | 1 Vp-p |
| Bandwidth | 30 MHz (720 P)60 MHz (1080 P) |
| Digit bit width | 8 bit |
| Support camera pixels | 3 megapixels, 4 megapixels |
| Video pixel | 1280 (H) × 720 (V)1920 (H) × 1080 (V) |
| Signal to noise ratio | >60 dB (weighted) (8 bit) |
| Physical Interface | The industry standard connecting terminal |
| Interface Signal | RS485 |
| Baud rate | 1200 bit/s to 9600 bit/s |
| BER | <10-9 |
| Input Power Requirements | DC 5 V |
| Power Adapter | AC 100 V to 240 V |
| Operating temperature | -4 ⁰F to 167 ⁰F (-20 ⁰C to 75 ⁰C) |
| Storage temperature | -40 ⁰F to 185 ⁰F (-40 ⁰C to 85 ⁰C) |
| Working humidity | 0% to 95% (non-condensing) |
| MTBF | >100,000 hrs |
| Dimensions | 19 in x 8.66 in x 1.73 in (48.3 cm × 22 cm × 4.4 cm) |
| Weight | 11.02 lb (5 kg) |
