Overview
The Inventory Master embedded computer is equipped with an embedded android system, this cutting-edge industrial PC offers a robust and reliable solution for a variety of industrial applications. This sturdy IPC, designed for demanding industrial environments, promises optimal performance and adaptability.
Technical Specifications

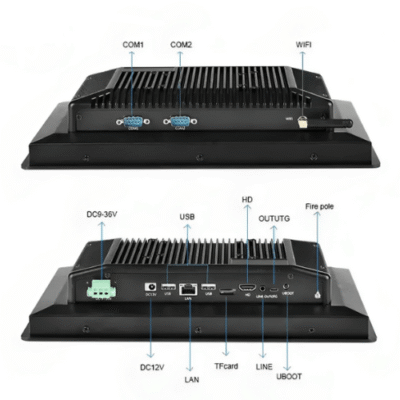

| DC Port 1 | 1 x DC 12 V/5525 socket |
| DC Port 2 | 1 x DC 9 V to 36 V/0.2 in (5.08 mm) phoenix 4 pin |
| USB | 2 x USB 3.0, 1 x USB 2.0 |
| Serial-Interface RS232 | 0 x COM (upgrade able) |
| Ethernet | 2 x RJ45 Giga Ethernet |
| VGA | 1 x VGA |
| HDMI | 1 x HDMI OUT |
| WIFI | 1 x WIFI antenna |
| Bluetooth | 1 x Bluetooth antenna |
| Audio input & output | 1 x earphone & MIC two-in-one |
| Screen Size | 10.1 in |
| Screen Resolution | 1280 x 800 |
| Luminous | 350 cd/m2 |
| Color Quantitis | 16.7 M |
| Contrast | 1000:1 |
| Visual Range | 85/85/85/85 (Typ.) (CR≥10) |
| Display Size (W x H) | 8.54 in × 5.34 in (217 mm × 135.6 mm) |
| Reaction Type | Capacitive touch |
| Lifetime | >50 million times |
| Surface Hardness | >7H |
| Effective Touch Strength | 45 g |
| Glass Type | Chemical reinforced Perspex |
| Luminousness | >85% |
| DC Port 1 | 1 x DC 12 V/5525 socket |
| DC Port 2 | 1 x DC 9 V-36 V / 0.2 in (5.08 mm) phoenix 3 pin |
| HDMI | 1 x HDMI |
| USB-OTG | 1 x Micro |
| USB-HOST | 2 x USB 2.0 |
| RJ45 Ethernet | 1 x 10 M/100 M Self-adaptive Ethernet |
| SD/TF | 1 x TF data storage, maximum 128G |
| Earphone jack | 1 x 3.5 mm Standard |
| Serial-Interface RS232 | 1 x COM |
| Serial-Interface RS422 | optional |
| Serial-Interface RS485 | optional |
| SIM Card | SIM card standard interfaces, customization available |
| Size | 10.91 in × 7.72 in × 2.13 in (27.7 cm X 19.6 cm X 5.4 cm) |
| Weight | 5.51 lb (2.5 kg) |
