Technical Specifications
| Processor | Core i3 10305T (quad core eight threads, base 3.0 GHz, burst 4.0 GHz) Core i5 10500T (six core twelve threads, base 2.3 GHz, burst 3.8 GHz, 12MB cache) Core i7 10700T (eight core sixteen threads, base 2.0 GHz, burst 4.5 GHz, 16MB cache) |
| Memory | 2 x DDR4 2666 or 3200MHz SODIMM memory slot，Max. 64 GB |
| Operating System | Windows 10, Windows 11, Linux |
| Storage | 1 x M-Key 2280 slot (support SATA or PCIE X4 NVME) 2 x (6.35 cm) 2.5-inch HDD |
| BIOS | AMI EFI BIOS |
| Chipset | UHD Graphics 630 UHD Graphics 750 |
| Display Port | 1 x HD, 1 x DP (Supports synchronous and asynchronous dual display) |

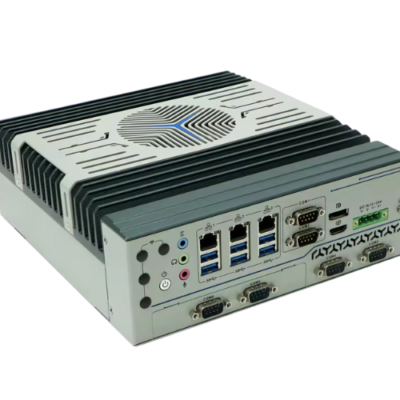

| I or O | 1 x 4 Pin Phoenix terminal 1 x HD 1 x DP 6 x COM (COM1, COM2 can be option RS232 or RS485) 6 x USB 3.0 3 x 2.5G network port 1 x Mic 2 x Audio 1 x Power Button |
| Expansion Slot | 1 x M.2 M-Key 2280 slot (support SATA or PCIE X4 NVME signal) 1 x MINI PCIE slot (support WIFI or Bluetooth) 2 x M.2 B-key slot 3042 or 3052 (support 4G or 5G) with SIM card slot Expansion (the standard isn’t included): 4 x USB 2.0, 16 bits GPIO |
| Network | 3 x i225-V 2.5G LAN port |
| Power Supply | Support 4 Pin Phoenix terminal, DC 12V to 24V wide-voltage input |
| Other Function | Power-on, timed startup, network wake up, PXE startup, watchdog (level 0 to 255), TPM2.0 |
| Application | Industrial automation, medical, logistics, transportation, warehousing, e-education, etc. |
| Installation | Wall mount (standard), DIN rail mount (optional), desktop (default) |
| Material | High quality aluminum alloy (hard anodized surface) + sheet metal structure (spray paint) |
| Color | Grey + white (colors can be customized) |
| Work Humidity | 5% RH to 95% RH, non-condensing |
| Work Temperature | Commercial HDD: 32°F to 122°F (0°C to 50°C) Industrial SSD: -4°F to 140°F (-20°C to 60°C) Surface air flow |
| Dimension | 8.85 in x 9.44 in x 3.26 in (225 mm x 240 mm x 83 mm) |
| Weight | 6.13 lbs (2.78 kg) (isn’t included the wall mount) |
