Overview

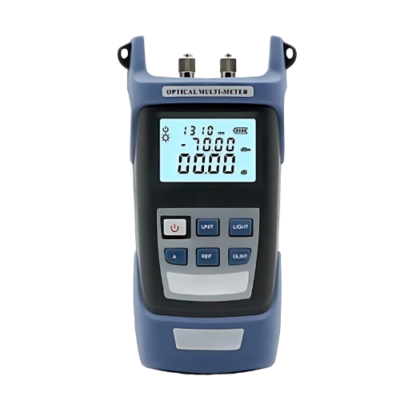

The Inventory Master pon optical power meter series, Light power meter red light pen integral machine series products are mainly used for continuous optical signal power measurement and optical fiber line breaking test. It is controlled with single chip microprocessor that is full function. It is widely used in construction and maintenance of optical cable, optical communication, and optical sensor and optical CATV such areas. The design of the machine meets the requirement of ergonomics. It adopts advanced cold mold technology which is beautiful and endurable. The built-in detectors and lasers allow the product to be well protected. Light power meter has a small shape, optional switch, background light displays and automatic shutdown function, wavelength memory function, manual calibration, optical fiber work identification, wide testing range. Light power meter red pen integration machine has automatic shutdown function, two red light mode, three kinds of backlight mode, wavelength memory function, optical fiber work identification, manual calibration, red light power, wide testing range.
Features
- Support linear indicators (mW) and nonlinear indicators (dB)
- Support auto power off
- Support backlight ON or OFF
- Support self-calibration by user himself
- Support SC FC interface ST interface (optional)
- Charging unplugged working time 48 hours (optional)
- Support portable battery or computer power supply (optional)
- Support wavelength memory function
- Support optical fiber work identification
- Support red constant and flashing
Technical Specifications
| Connector | FC or SC or ST (ST optional) |
| Display Resolution | Linear indication 0.1% Logarithmic indication 0.01dBm % |
| Working Wavelength Of Red Light | 650 nm |
| Red Power (Integration Machine Series) | 1 MW 5 MW 10 MW 20 MW 30 MW (optional) |
| Battery Working Time (h) | >= 48 hours |
| Power | No 5 battery |
| Auto Power-off Time | 10 min |
| Working Temperature | 14°F to 140 °F ( -10 °C to 60 °C) |
| Storage Temperature | 77 °F to 158 °F (25 °C to 70 °C) |
| Size | 7.48 in x 3.94 in x 1.89 in or 6.5 in x 2.95 in x 1.1 in (190 mm x100 mm x 48 mm or 165 mm x75 mm x28 mm) |
| Weight | 10.58 oz or 14.11 oz (300 g or 400 g) |
