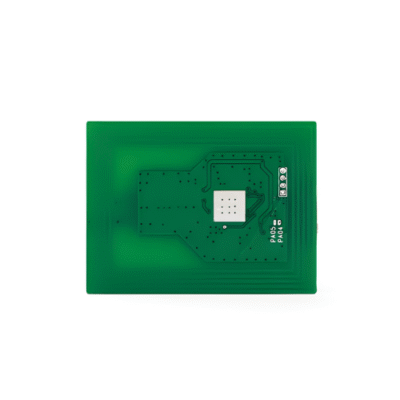

HF RFID Reader Module 13.56MHz, ISO14443/15693, SPI/I2C/UART – The Inventory Master
HF RFID Reader Module 13.56MHz, ISO14443/15693, SPI/I2C/UART – The Inventory Master
HF RFID Reader Module 13.56MHz, ISO14443/15693, SPI/I2C/UART – The Inventory Master
HF RFID Reader Module 13.56MHz, ISO14443/15693, SPI/I2C/UART – The Inventory Master
  1. HF RFID Reader Module 13.56MHz, ISO14443/15693, SPI/I2C/UART – The Inventory Master
  2. HF RFID Reader Module 13.56MHz, ISO14443/15693, SPI/I2C/UART – The Inventory Master
  3. HF RFID Reader Module 13.56MHz, ISO14443/15693, SPI/I2C/UART – The Inventory Master
  4. HF RFID Reader Module 13.56MHz, ISO14443/15693, SPI/I2C/UART – The Inventory Master

HF RFID Reader Module 13.56MHz, ISO14443/15693, SPI/I2C/UART – The Inventory Master

Compact HF RFID reader for smart exchange stations, 13.56MHz, ISO14443/15693, SPI/I2C/UART, 10cm range, low power consumption.

SKU: TIMHMOD-131 Category:

Technical Specifications

Working Frequency13.56 MHz
ProtocolISO 14443 A, ISO 15693
Reading Distance3.94 in (10 cm)
Communication InterfaceSPI interface, I 2 C  interface, Serial UART interface
Serial Port Baud Rate115200 bps no parity, 8 data bits, 1 stop bit
PowerDC 5 V
Reading Current100 mA
Stand-By Current40 mA
Working Temperature-22 oF to 176 oF (-30 oC to 80 oC)
Storage Temperature-40 oF to 194 oF (-40 oC to 90 oC)
Storage Humidity5% RH to 95%  RH no condensation
Size1.18 in x 1.57 in (30 mm x 40 mm)
Weight0.35 oz (10 g)
