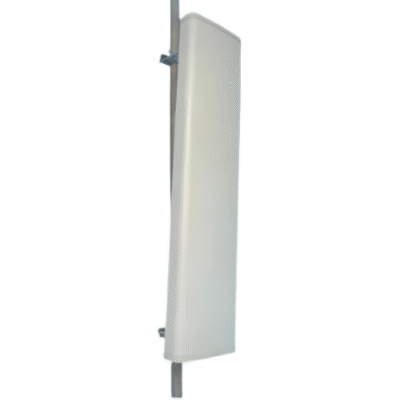

High-Gain UHF RFID Antenna, 902-928 MHz, 15 dBi, 120° Directional Panel – The Inventory Master
High-Gain UHF RFID Antenna, 902-928 MHz, 15 dBi, 120° Directional Panel – The Inventory Master
  1. High-Gain UHF RFID Antenna, 902-928 MHz, 15 dBi, 120° Directional Panel – The Inventory Master
  2. High-Gain UHF RFID Antenna, 902-928 MHz, 15 dBi, 120° Directional Panel – The Inventory Master

High-Gain UHF RFID Antenna, 902-928 MHz, 15 dBi, 120° Directional Panel – The Inventory Master

Optimize RFID connectivity with this 15 dBi UHF antenna, with 120° beam width, and versatile polarization for efficient base station performance.

SKU: TIMANT-269 Category:

Features

  • High gain
  • Full day working
  • Optimized dimension
  • Vertical or horizontal polarization



Technical Specifications

Frequency Range902 MHz to 928 MHz
PolarizationVertical
Gain15 dBi
Half Power Beam WidthH 120 °
V 7 °
Front To Back Ratio≥ 18 dB
Input Impedance50 Ω
VSWR≤ 1.5
Sidelobe Suppression For First Sidelobe Above Horizon15 dB
Maximum Input Power400 W
Lightning ProtectionDC Ground
Input Connector TypeN Female
Radome MaterialUPVC
Radome ColorGray
Mechanical Tilt0 ° to 10 °
Rated Wind Velocity196.85 ft per s (60 m per s)
Waterproof StandardIP67
Mounting WayPole holding
Mounting Hardware1.38 in to 3.54 in (35 mm to 90 mm)
Operating Temperature– 40 °F to 140 °F (- 40 °C to 60 °C)
Dimensions86.61 in x 11.02 in x 4.92 in (2200 mm x 280 mm x 125 mm)
Antenna Weight31.97 lb (14.5 kg)
