Technical Specifications

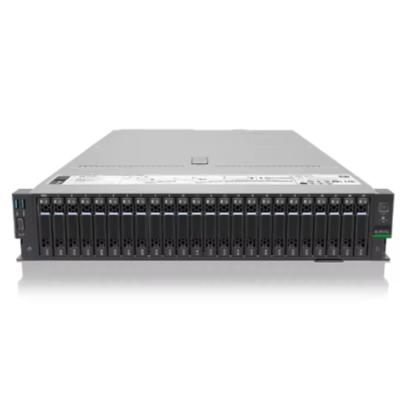

| Form | 2U Rack Server |
| Processor | Supports two the 3rd generation Intel Xeon scalable processors up to 270W |
| Chipset | C621A series chipset |
| Internal memory | 32 DDR4 memory slots, up to 3200 MHZ, supporting various protection modes, such as memory ECC, memory mirroring, and memory hot spare |
| Memory controller | Supports multiple storage solutions such as pass through, RAID0, 1, 10, 5, 50, 6, 60, etc When configuring a RAID controller, it can support Cache super capacitor protection, providing functions such as RAID level migration, disk roaming, self diagnosis, and web remote settings |
| Local storage | Front: Supports a maximum of 12 (8.89 cm) 3.5 in or 24 (6.35 cm) 2.5 in hard drives, compatible with a maximum of 24 NVMe hard drives, and is hot-swappable Rear: Supports a maximum of four (8.89 cm) 3.5-inch hard disks and four (6.35cm) 2.5-inch hard disks, and is compatible with a maximum of four NVMe hard disks Built-in: 2 SATA M.2 and 1 on-board EMMC chip |
| Network interface | Nic: One OCP3.0 with NCSI function The OCP3.0 provides 2x 1GE、2 x 10GE、2 x 25GE 、2 x 100GE、2 x 200GE ports |
| PCI-E extension | Supports a maximum of 10 PCIe expansion slots, including one hard disk controller slot and one OCP slot Eight pcie 4.0 standard slots |
| Other interface | One RJ-45 management port located at the rear of the chassis The two USB3.0 ports are located at the rear of the chassis, with one built-in USB3.0 port Two USB3.0 or USB2.0 devices can be configured at the front of the chassis One VGA port, located at the rear of the chassis, supports VGA 1 on the front optionally One serial port can be configured for the rear of the chassis |
| Power source | Optional 800W or 1200W or 1300W or 1600 W CRPS high-efficiency Platinum hot-swappable power supply, support 1+1 redundancy, voltage range 100-240Vac(Please refer to the power input value on the nameplate label) |
| Fan module | Four hot-swappable fan modules in N+1 redundancy |
| Management function | Integrated BMC chip, provides a 1Gbps RJ45 management port and supports standard interfaces such as Redfish, SNMP, and IP 2.0. Remote management interface based on IKVM or HTML5, providing comprehensive fault diagnosis, automatic operation and maintenance, remote management functions |
| Graphics card | Integrated display controller, resolution 1920×1080 |
| Operating system | Microsoft Windows Server, RedHat Enterprise Linux ,SUSE Linux,Enterprise Server, CentOS, Ubuntu, VMware EXSI, etc |
| SSD | 480G |
| CPU | Intel 4310 2.1G 10.4UPI 18M 12C 120W x 1 32G DDR4 x 1 480G SSD x 1 32DIMM |
| Power Supply | 800 W |
| Operating temperature | 41°F to 113°F (5 ℃ to 45 ℃) |
| Case size (H x W x D | 3.46 in (87.8mm) x 17.56 in (446mm) x 31.26 in (794mm) |
| Net weight of whole machine | Maximum 77.16 Ib (35KG) (based on actual configuration) |
