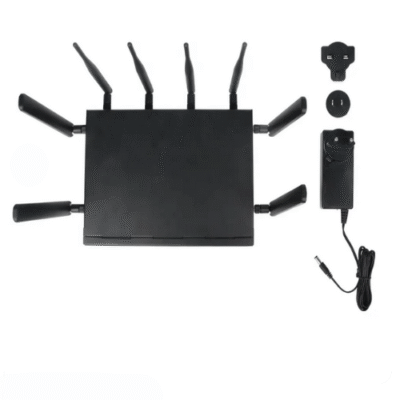

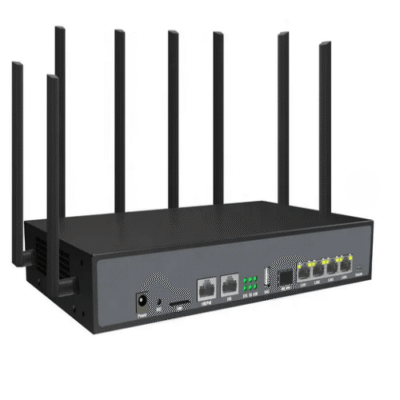

High-Performance Dual Band Enterprise Wi-Fi with 45W Power Use – The Inventory Master

This advanced router offers 1000 Mbps LAN, dual-band Wi-Fi (2.4G & 5G), and supports VoIP, VPN, and firewall for secure enterprise networking.

SKU: TIMEWIFI-142 Category:

Technical Specifications

ProcessorQualcomm Alder Quad A73 2.2 GHz (IPQ9570 or IPQ9574)
Wireless ChipsetWaikiki 2.4 GHz band QCN6224 – 2.4 GHz  Waikiki 5 GHz band QCN6274 – 5 GHz 

Waikiki 6 GHz band QCN6274 – 6 GHz (EU or US)

2.5ge PhyQualcomm QCA8084
10ge PhyMARVELL AQR113C (10 GBE) RJ45 ×2
SPI NOR Flash16 MB
SPI NAND Flash256 MB
DDR42 GB (32-bit)
Fixed Port1 × 10 M or 100 M or 1000 M or 2500 M or 5000 M or 10000 M Base-TX MDI or MDIX RJ-45 port with PoE PD 802.3 bt  4x 2.5 GE LAN 

1×1000 M or 2500 M or 10000 M SFP 

1x USB 3.0 port 

1x Console port 

1x DC power jack

WirelessRadio 1 802.11be, 4 x 4 2.4 GHz 1376 Mbps  Radio 2 802.11be, 4 x 4 5 GHz 11.5 Gbps 

Radio 3 802.11be, 4 x 4 6 GHz 11.5 Gbps

Antenna8x External dual band antennas –2.4 G or 5 G or 6 G
Operating Frequencies802.11be or ax or ac or n or a 5150 GHz to 5.850 GHz  802.11 11be or ax or b or g or n 2.4 GHz to 2.483 GHz 

802.11be or ax or ac or n or a EU 5.945 GHz to 6.425 GHz US6.115 GHz to 7.125 GHz

Supported StandardsIEEE 802.11a or b or g or n or ac or ax or be  IEEE 802.11d or e or h or I or j or k or r or u or v or w 

IEEE 802.11ba

Modulation ModeModulation  802.11a/g/n BPSK, QPSK, 16QAM, 64QAM 

802.11b CCK (11 & 5.5 Mbps), DQPSK (2Mbps), DBPSK (1Mbps) 802.11n PSK or CCK, DBPSK, DQPSK, OFDM 

802.11ac BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 

802.11ax BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11be：BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM

Maximum Radio Power2.4 GHz 20 dBm  5 GHz 20 dBm 

6 GHz 20 dBm 

(Transmit power is multi-chain combined power, no antenna gains included. The actual transmit power depends on local laws and regulations)

Bandwidth20 MHz or 40 MHz in 2.4 GHz 20 MHz, 40 MHz, 80 MHz, 160 MHz or 320 MHz to 80 MHz in 5 GHz and 6 GHz
Operating Temperature or Storage TemperatureOperating Tem 14 ℉ to 122 ℉ (-10 ºC to 50 ºC)  Storage Tem -40 ℉ to 167 ℉ (-40 º C to 75 º C)
Power SourcePoE PD 802.3 BT 60 W  Adapter 12 V DC 3.5 A
Power Consumption<45 W
Dimension10.24 in x 6.30 in x 1.77 in (260 mm x 160 mm x 45 mm)
Weight3.97 lb (1.8 kg)

Click Here to Download Technical
Documentation (User Manual or Instruction Manual)
