Overview

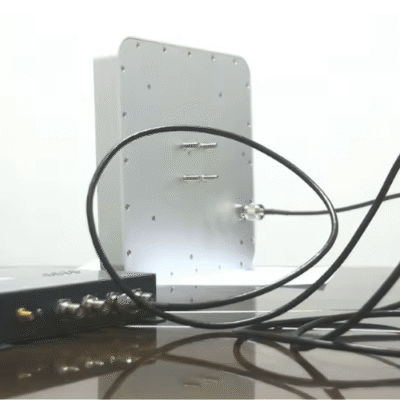

The Inventory Master UHF RFID 902-920Mhz Antennas 10m long range IP67 waterproof circular polarization 9dbi outdoor panel antenna features extremely low voltage standing waves (VSWR) and axial ratios. With these low ratios, the user will be able to maximize the performance of the panel antenna and improve efficiency in the system. With an IP rating of 67, the heavy duty radome antenna enclosure is perfect mounting directly to the walls of industrial environments such as warehouses, terminals, distribution centers, and more.
Features
- N-50KFD (Type N Female) connector type
- Engineering plastics ASA and aluminum material
- IP67 production class
- Circular polarization
Technical Specifications
| Frequency Range | 860 MHz to 868 MHz or 902 MHz to 920 MHz |
| Impedance | 50 Ω |
| Connector Type | N-50KFD (Type N Female) |
| Material | Engineering plastics ASA and aluminum |
| Color | Ivory white |
| Production Class | IP67 |
| Maximum VSWR | 1.3 to 1 |
| Polarization | Circular Polarization |
| Relative Humidity | 5 % to 95 % |
| Operating Temperature | – 40 °F to 185 °F (- 40 ℃ to + 85 ℃) |
| Storage Temperature | – 40 °F to 185 °F (- 40 ℃ to + 85 ℃) |
