Overview

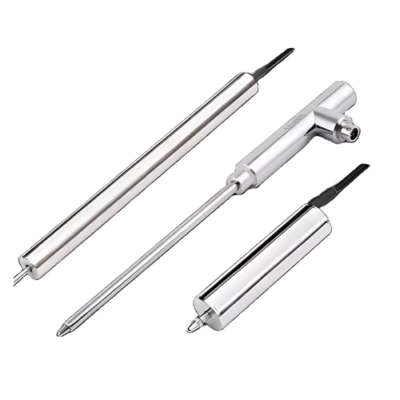

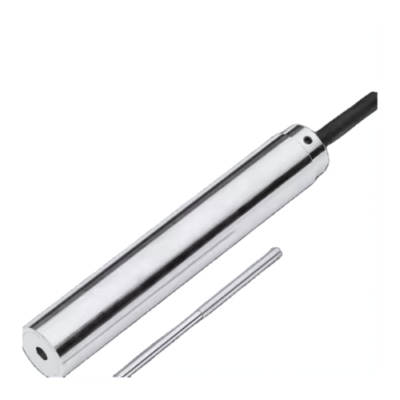

The Inventory Master High Precision LVDT Displacement Sensor 9 V to 28 V DC 0 V to 10 V 4 mA to 20 mA Output. LVDT has excellent performance and uses a convenient single power supply 9 V to 28 V DC power supply, electronic circuits sealed in stainless steel metal tubes, can work in harsh environments such as humidity and dust
Technical Specifications
| Power Supply | 9 V DC to 28 V DC |
| Operating Current | Voltage output type supply current ≤ 12 mA |
| 2-wire 4 mA to 20 mA current output type LVDT, supply current 4 to 20mA | |
| Displacement Range | 0.098 in, 0.197 in, 0.394 in, 0.591 in, 0.984 in, 1.969 in, 3.937 in, 9.843 in, 19.685 in (2.5 mm,5 cm,1 cm,1.5 cm, 2.5 cm, 5 cm, 10 cm, 25 cm, 50 cm) |
| Output Signal | 0 to 5V (9 to 28V DC Power supply) 0 to 10V (15 V to 28 V DC Power supply) 4 mA to 20 mA (2-wire ,15 Vto 28 V DC Power supply) |
| Linearity Error | Analog output: ± 0.25 %, ± 0.5 %, etc. optional; Digital output: 0.25 %, 0.1, etc. optional |
| Repetition Error | ≤ 0.01 % F.S |
| Resolution | ≤ 0.1 μm (Max), Digital output type 16 bit |
| Temperature Coefficient | zero point ≤ 0.01 % / °C Sensitivity ≤ 0.025 % / °C |
| Protection Level | IP64 |
