Overview

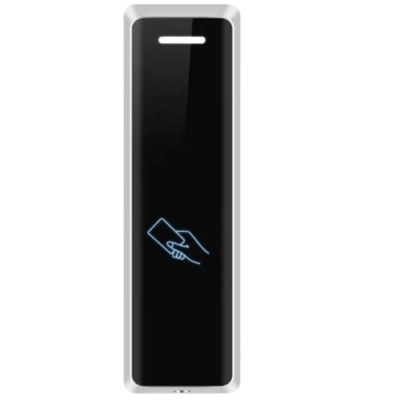

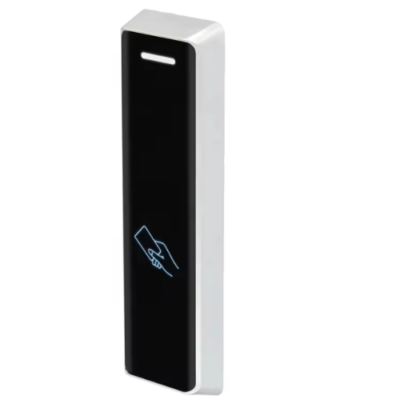

The The Inventory Master 125KHz RFID Door Reader features a durable ABS frame with IP65 waterproof rating. Compatible with Wiegand 26 or Wiegand 34 interfaces.
Technical Specifications
| Frequency | 125KHz |
| Interface | Wiegand 26 or Wiegand34 |
| Material | ABS frame + PCB Board |
| Waterproof | IP65 |
| Frequency | 125KHz |
| Working Voltage | DC 12V (±5%) |
| Working Current | Less than 200mA |
| Working Temperature | 14°F to 140°F (-10℃ to +60℃) |
| Storage Temperature | −4°F to 176°F (-20℃ to +80℃) |
| Working Humidity | 15% to 90% |
| Output Format | Optional WG26, WG34, WG66 |
| Wiring Definition | Red (VCC); Black (GND); White(D1); Green(D0); Purple (Beer); Gray (CLED); Yellow (output WG26 connect to GND): |
| Size | 6.02in × 1.77in × 0.64in (153 mm x 45 mm x 16.3 mm) |
