Overview

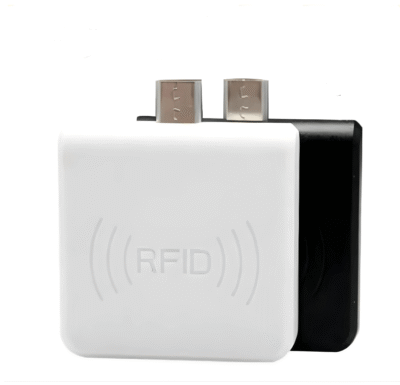

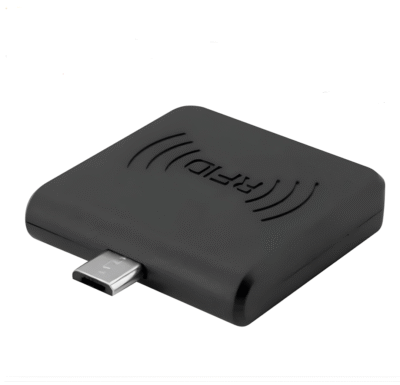

The Inventory Master Lf 125kHz Reader Mini USB Passive Tag RFID Reader ISO 14443A protocol and contactless Android mini-reader using the micro-USB port to connect the device to the Android system. Beautifully designed, it’s not only a simple aspect but also stable and reliable data. On the other hand, it can be connected to a computer via an OTG cable. It’s easier to transform between an Android phone and a computer’s micro-USB port into a USB port. Widely used for RFID radio frequency identification systems and projects such as automated parking management systems, personal identification access controllers, production access control, etc.
Technical Specifications
| Frequency | 125 khz |
| Support Cards | MF (S50/S70/Ntag203 etc. 14443A protocols cards) |
| Output Format | 10-digit dec+ Enter (Default output format) (Allow user to customize the output format) |
| Interface | USB |
| Power Supply | DC 5 V |
| Operating Distance | 0 in to 3.94 in(0 mm to 100 mm) (related to the card or the environment) |
| Service Temperature | 14 °F to 158°F (-10 ºC to +70 ºC) |
| Store Temperature | -4 °F to 176 °F (-20 ºC to +80 ºC) |
| Working Humidity | <90 % |
| Read Time | <200 ms |
| Read Interval | <0.5 S |
| Weight | About 0.71 oz (20 g) (Without Package) About 1.76 oz (50 g) (With Package) |
| Material Of Reader | ABS |
| Operating System | Win XP or Win CE or Win 7 or Win 10 or LIUNX or Vista or Android |
| Indicators | Double Colour LED (Blue & Green) and Buzzer (“Blue” means standby, “Green” means reader success) |
| Size | 1.38 in x 1.38 in x 0.28 in (35 mm×35 mm×7 mm) (Without package) |
| Colour | White or Black (Optional) |
