Overview

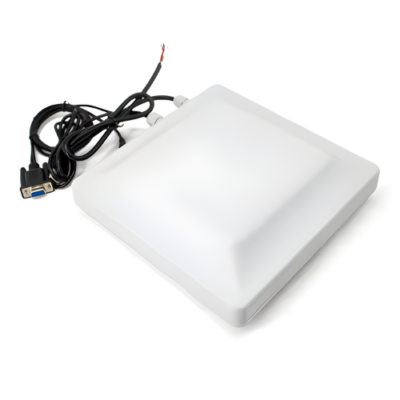

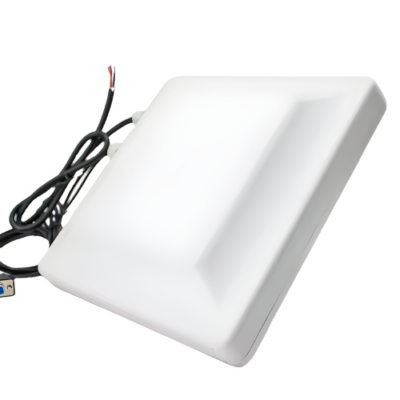

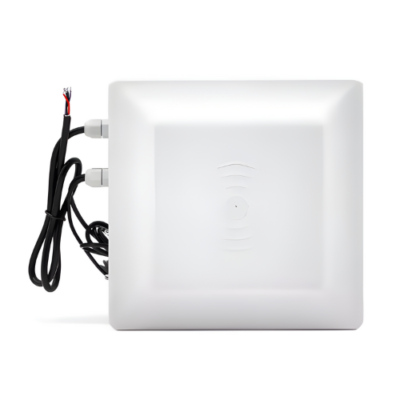

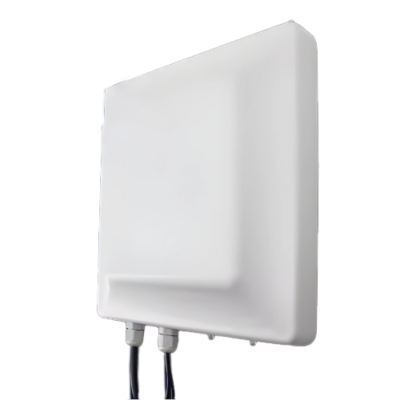

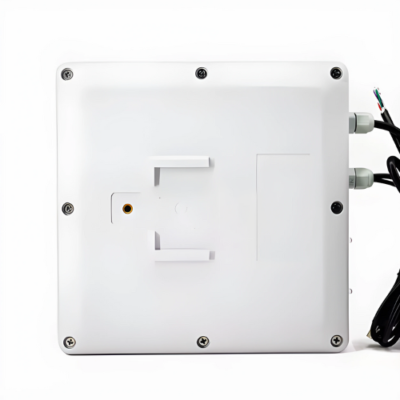

The Inventory Master Long-distance UHF tag RFID Reader has multi-protocol compatibility, fast reading speed, and a waterproof appearance design, which meets the requirements of harsh working environments. Fully support ISO-18000-6C (EPC G 2) electronic labels. Support USB, RS 232 and W 26 or 34 and other communication methods. The output power can be adjusted up to 30 dbm, and it supports multiple working modes such as timing mode, master-slave mode, and trigger mode.
Technical Specifications
| Frequency | 902 MHz to 928 MHz or 865 MHz to 868 MHz |
| Protocol | ISO18000-6C (EPC G2) |
| Antenna Gain | Built-in circularly polarized antenna, gain 7 dBi |
| Output Power | 0 dBm to 30 dBm, Software adjustable |
| Input Interface | 1 channel trigger input |
| Communication Interface | W26 or 34, RS232 or RS485, USB, TCP |
| Reading Distance | 0 ft to 16.40 ft (high power 0 ft to 26.25 ft). (0 m to 5 m) (high power 0 m to 8 m) |
| Operating Temperature | -40 °F to 149 °F (-40 ℃ to 65 ℃) |
| Size | 8.46 in x 8.46 in x 1.97 in (215 mm x 215 mm x 50 mm) |
