Overview

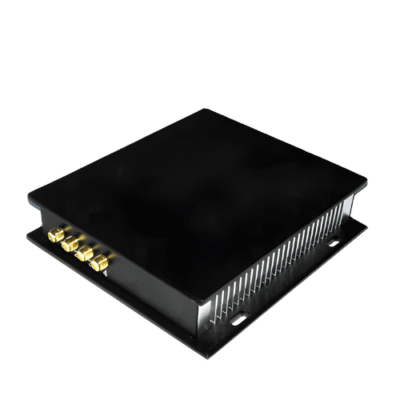

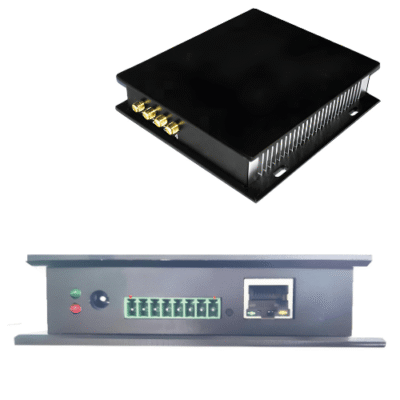

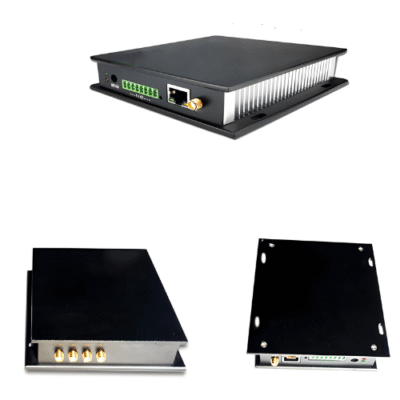

Discover unparalleled performance with our RFID reader, supporting various protocols and offering a vast reading distance of up to 49.2 ft (15 m).
Technical Specifications
| Working Frequency | 865 MHz to 868 MHz or 902 MHz to 928 MHz |
| Protocol | EPC C1G2, ISO18000-6B/C |
| Frequency Band | GB 920 MHz to 925 MHz, 840 MHz to 845 MHz; FCC 902 MHz to 928 MHz； |
| Label /Sticker Protocol | Support lS018000-6B,1S018000-6C (EPC GEN2) protocol electronic label |
| Reading Distance | 49.2 ft (15 m) |
| Working Mode | Automatic mode, trigger mode, interactive mode, etc. |
| Antenna | 12 dBm circularly antenna |
| Frequency Hopping Mode | Broad spectrum frequency hopping (FHSS) or fixed frequency, which can be set by software |

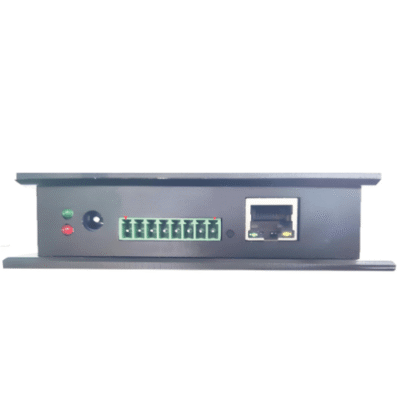

| Interface | Standard RS232/RS485, Wiegand26/34 (Optional TCP/IP, WIFI, GPRS) |
| RF Power | 0 dBm to 30 dBm (power software adjustable) |
| Recognition Speed | >600 times per s |
| Recognition Indicating | Beep or LED flash |
| Power Consumption | ＜3W |
| Size | 17.7 in x 17.7 in x 2.7 in (450 mm x 450 mm x 70 mm) |
| Gross Weight | 11.0 lb (5 kg) |
