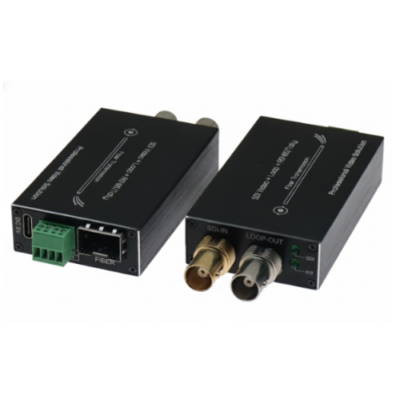

Technical Specifications
Fiber Optical Interface
| Item | Specification |
| Fiber interface | Simplex LC |
| Transmission distance | 550 m – 20 km |
| Wavelength | 1310 nm / 1550 nm |
Video
| Item | Specification |
| Video interface | BNC |
| Video input/output impedance | 75 Ω |
| Video input/output voltage | Typical: 1 Vpp, Min: 0.5 Vpp, Max: 1.5 Vpp |
| Video bit rate | Max 1.485 Gb/s |
| Differential gain (10%–90% APL) | <1% |
| Video formats | 625/25 PAL |
| SDI format support | 525/29.97 NTSC, 525/23.98 NTSC, 720p50/59.94, 1080i 23/24/30/50/59.94 |
| Video SDI standard | 270 Mbps (SD-SDI), 1.485 Gbps (HD-SDI) |
Data
| Item | Specification |
| Physical interface | Industrial screw terminal |
| Data type | Tally & Reverse RS485 |
| Frequency/Rate support | RS422: up to 115,200 bps RS485: up to 576,000 bps |
| BER | <10⁻⁹ |
Electrical
| Item | Specification |
| Power adaptor | DC 5 V |
| Power consumption | <5 W |
LED Indicator
| Indicator | Meaning |
| SDI | SDI video |
| P/T | Power supply |
Mechanical
| Item | Specification |
| Dimensions (L × W × H) | TX: 73 × 44 × 17 mm RX: 73 × 44 × 17 mm Package: 185 × 132 × 100 mm |
| Weight | TX: 75 g RX: 75 g Package: 450 g |
| Casing | Aluminum |
| Mounting options | Desktop |
Environmental
| Item | Specification |
| Working temperature | −20°C to +70°C |
| Storage temperature | −40°C to +80°C |
| Working humidity | 0–95% |
| MTBF | ≥100,000 hours |
