Overview

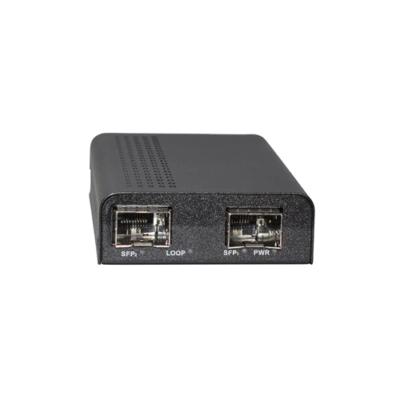

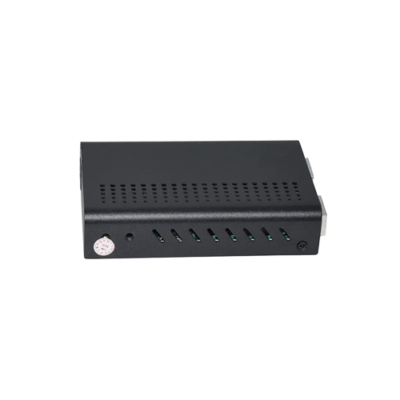

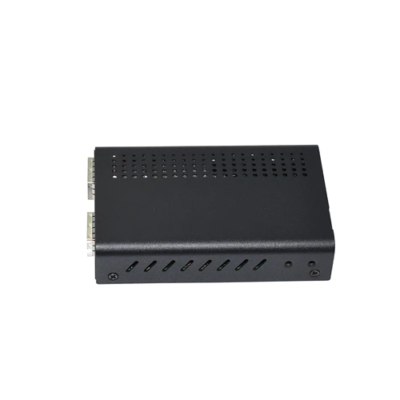

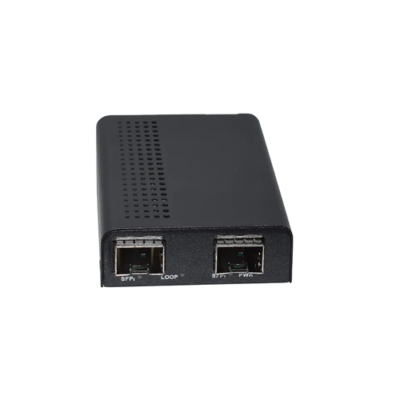

The Inventory Master Mini Media Fiber Optic Converter, 11.7 Gbps, 74.56 mi is a high-performance 125 M to 11.7 G optical signals Repeaters. Using Optical Electrical Optical wavelength conversion, realize the optical signal equilibrium application clock extraction and optical regeneration with WDM (DWDM or CWDM) technology can achieve optical signals transmitted in a single fiber by single or multiple ways over a long distance. The existing network infrastructure can quickly improve the communication capacity and expand the bandwidth while using low-cost and highly cost-effective solutions to manage and operate the system, easy operation and maintenance.
Features
- Enables high-speed
- Transparent connections for metro and optical networks
- Wavelength conversion with EDFA amplification extends range
- Supporting Jumbo frame
- Support SAN, LAN, WAN, point-to-point transmission
- Multi-data and multi-rate interfaces address network resource constraints
- Transparent Transport and very low delay
- Support ITUT-prescribed DWDM or CWDM wavelength
- Support hot plugging
- Full State Led display
- Easy installation
Technical Specifications
| Transmission Distance | SFP+, Fiber: MM 0.31 mi (500 m) or 1.24 mi (2 km), SM: 12.42 mi (20 km) or 24.85 mi (40 km) or 37.28 mi (60 km) or 49.70 mi (80 km) or 74.56 mi (120 km) |
| Dip Switches | ALS (optional) DIP Switches LFP (optional) Loop (optional) |

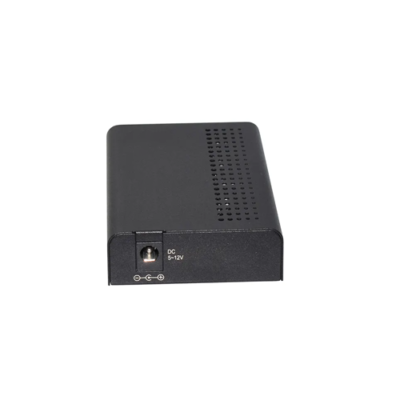

| Input Power Requirements | Input voltage: DC 5 V to 12 V, 1.4 A or 0.6 A Power consumes: Full load <7 W |
| MTBF | 50,000 hrs |
| Transmission Mode | 125 Mb/s to 11.7 G |
| Operating Temperature | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Storage Temperature | 14 °F to 158 °F (-10 ℃ to 70 ℃) |
| Enclosure | Metal |
| Cooling | free air convection |
| Relative Humidity | 5% to 95% (non-condensation) |
| Maximum Packet Forwarding Rate | 14/S, 880/S, 950/S |
| Emissions | FCC Class A, CE Class A |
| Dimensions | 3.74 in × 2.36 in × 0.78 in (95 mm × 60 mm × 20 mm) |
| Weight | 0.28 lb (130 g) |
