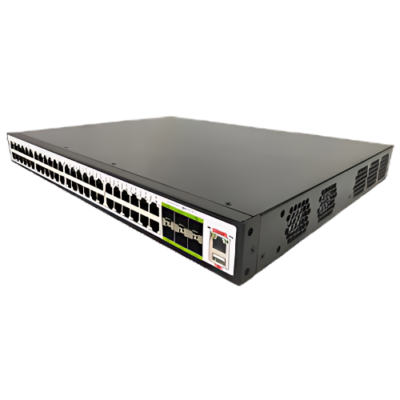

A high-performance 48-port 10G switch with PoE support, 216 Gbps capacity, SNMP, VLAN, and QoS features, ideal for efficient network management.

SKU: TIMEWF-250 Category:

Features

  • Supports management, DNS, SNMP, Services, Timer Schedule and Services System
  • Supports Switching for VLANs, Multicast, Address Tables, Loop Protect, Port management and Auto VoIP
  • VLAN Provides 4K VLAN ID, Protocol VLAN, Voice VLAN, GARP Switch and 802.1q Port based VLAN
  • Supports IEEE 802.3ad with LACP – 12 aggregation group(1 aggregation group is up to 8 physical ports)



Technical Specifications

Transmission Rate48 x 1G +6 x 10G SFP+
Communication ModeFull-Duplex
Switch Capacity216 Gbps
Ports54
Flash Memory256Mb
DRAM4Gb
Interface• 48-Port 10 or 100 or 1000 Base-T

• 6-Port 1000 or 10GBase-R (SFP+)      • 1-Port Console (With RJ-45)

• 1-Port USB

PowerInput: AC 100V AC to 240V AC, 50Hz to 60Hz Power Consumption: 75W
FunctionLACP, QoS, SNMP, VLAN Support
Keywords10G Switch 48 port PoE switches
POE PortSupport 48 to Ports 10 or 100 or 1000 802.3af or at Base to T
Max PoE Power Budget780 W
FeaturesSNMP, VLAN, Auto QoS, ACL
Switching Capacity216 Gbps
FanForced-Air Cooling
Operating Humidity20 %RH to 85%RH (Non-Condensing)
Storage Humidity5 %RH to 9 %RH (Non-Condensing)
Operating Temperature32 °F to 104 °F (0 °C to 40 °C)
Storage Temperature-4°F to 158°F (-20 °C to 70 °C)
Dimension17.32 in x 1.73 in x 12.99 in (44.0 cm x 4.4 cm x 33.0 cm)
Weight12.87 lbs (5.84 kg)
