Overview

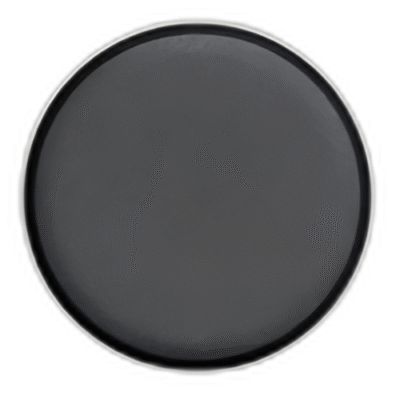

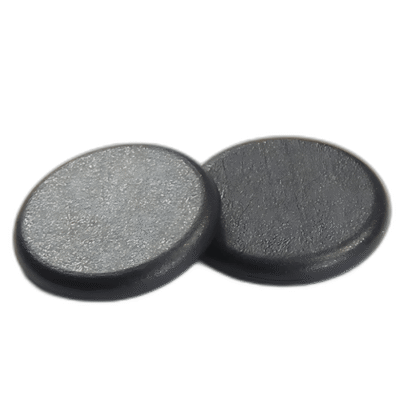

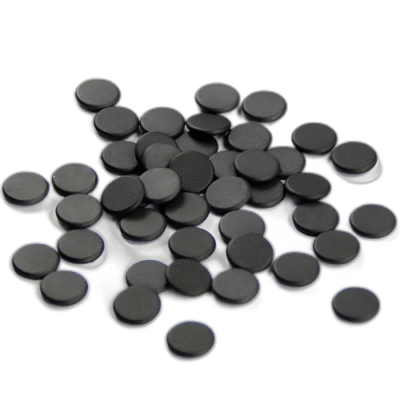

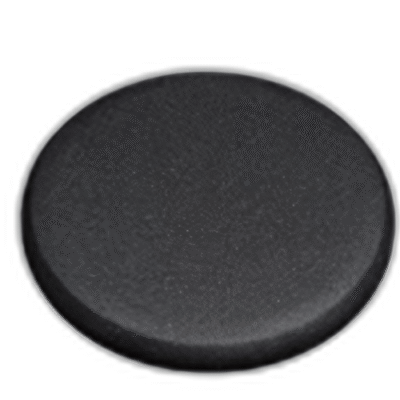

The Inventory Master NFC Round Laundry Tag RFID mini anti-metal rewritable small nfc tag are beginning used more widely in electronic products or any other products.
Due to the limited space to put the NFC tag inside, the traditional aluminum antenna couldn’t have the mini size. But the rfid mini anti-metal rewritable small nfc tag with copper antenna works perfectly in this situation.
Also, could be worked in the metal surface as well. As a National Hi-Tech Enterprise, we are focused on manufacturing a variety of rfid mini anti-metal rewritable small waterproof factory direct price nfc tag.
Technical Specifications
| Frequency | 13.56 MHz ± 300 kHz |
| Protocol | ISO 1444 3A or ISO 15693 |
| Material | PPS, black(customizable) |
| Chip | TK 4100, EM 4200, EM 4305, T 5577, Alien H3, FM 1108, Mifarel s50, Ultralight |
| Memory | 96 bit or 256 bit or 512 bit or 1024 bit or 2048 bits |
| Antenna | Copper antenna |
| Write Endurance | ≥ 100000 cycles |
| Data Retention Time | 10 years |
| Protection Level | IP 68 |
| Working Temperature | – 13 °F to 356 °F (- 25 °C to + 180 °C) |
| Storage Temperature | – 13 °F to 194 °F (- 25 °C to + 90°C) |
| Vibration | ISO or IEC 68.2.6, 0.35 ounce (10 g, 10.2000 Hz, 3 axis, 2.5 h) |
| Mechanical Stability | Axial or radial compressive strength 1000 N or 500 N (10 seconds, static). Isostatic water pressure 45 bar (10 hours) |
| Washing Cycle | 200 |
| Chemical Resistance | Laundry and dry-cleaning processes using typical chemicals |
| Size | 0.70 in x 0.11 in (18 x 3 mm) or customized |
