Technical Specifications
| OS | Android 9.0 |
| CPU | Hexa core, the main frequency is up to 1.8GHz |
| GPU | Mali T860 GPU |
| Memory | DDR 2 GB, 4 GB Option |
| Storage | 16 GB ,8 GB or 32 GB or 64 GB or 128GB option |
| Outer interface of the motherboard | Ethernet LAN port x 2(1000 Mbps & 100 Mbps) |
| 12 V power port | |
| 5 G module interface | |
| 8 x USB 2.0 HOST, 4 x USB 3.0 HOST | |
| Nano-SIM card slot x 1 / TF card slot x 1 | |
| Earphone port x 1 | |
| Microphone port x 1 | |
| 2 x HD MI 2.0 output (4 K & 1080 P) | |
| Expansion board interface | USB 2.0 HOST |
| RS 232 serial port x 4, RS 485 serial port x 2, | |
| 1 x switch machine button interface | |
| 1 infrared light display,1 LED light display | |
| GPIO ports | |
| RJ45 | 10 or 100 or 1000 Mbps |
| Blue-tooth | BT 4.0 |
| WiFi | 2.4 G or 5 G 802.11 b or g or n or ac |
| Video | wmv,avi,rmvb,mpeg ,mp4 etc. |
| Picture | BMP,JPG,PNG,GIF |
| Input voltage | 220 V AC 50 Hz |
| output ripple | 50 m Vp to p |
| Input current | 0 to 2 A MAX |
| Output voltage | 12 V |
| Output current | 0 to 2 A MAX |
| No-load loss | 0.3 W |
| Working Temperature | 32 oF to 158 oF (0 ℃ to +70 ℃) |
| Storage Temperature | -40 oF to 158 oF (-40 ℃ to +70 ℃) |
| Operating Humidity | 0 % to 90 %RH |
| Storage Humidity | 0 % to 90 %RH |

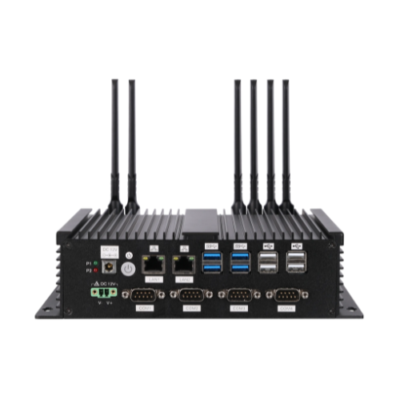

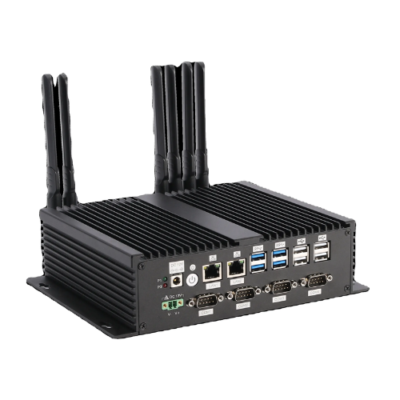

| Type | Embedded Computer |
| CPU | RK3399Pro Six-core |
| Memory | 2GB |
| EMMC | 16GB |
| USB | 4 X USB 2.0 4 X USB 3.0 |
| Operating System | Android 9.0 |
| Dimensions | 9.2 in X 5.7 in X 2.0 in (235 mm X 147 mm X 52 mm) |
