Overview

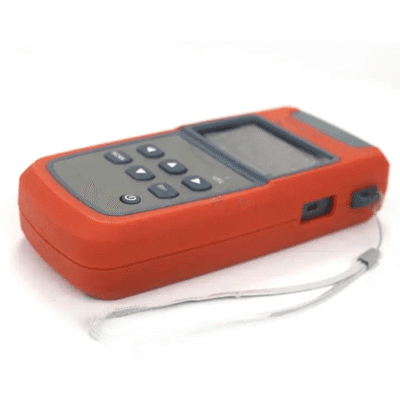

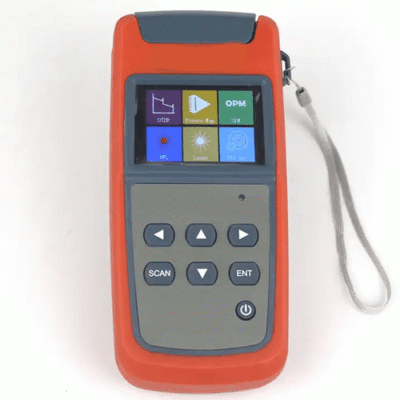

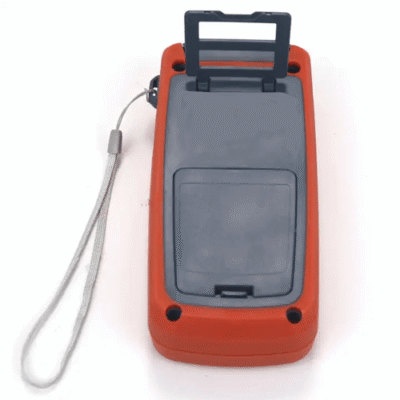

Portable Ethernet Tester with 22 dB Dynamic Range for Field Use. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the OTDR fiber ranger to detect fiber faults’ location more accurately and easier.
Features
- Portable, rugged, lightweight; Easy to use
- More accurate testing results and better repeatability
- Automatic Pulse Width Control design to ensure a convenient operation
- Easy to identify the faults’ location
- Built-in visual fault locator (VFL), conveniently to find the faults in dead zone
- Dust, water and shock proof, designed for field use
- Long battery life, up to 5000 measurements operation
Technical Specifications
| Wavelength | 1310 nm or 1550 nm |
| Type of fiber | 0.00035 in or 0.0049 in (9 um or 125 um) SM Fiber |
| Connecter | FC or SC or PC |
| Dynamic Range | 22 dB |
| Pulse Width | 5 ns to 8000 ns, Auto |
| Measurement | M |
| Event blind zone | 9.84 ft (3 m) |
| Attenuation blind | 32.8 ft (10 m) |
| Range accuracy | ± (3.28 ft (1 m) + 2 x 10-4 x distance) |
| OPM | -50 dBm to +26 dBm |
| 850 nm or 1300 nm or 1310 nm or 1490 nm or 1550 nm or 1625 nm | |
| VFL | ≥10 mW |
| Optical Light Source | 1550 nm |
| Power supply | 3psc of Dry battery |
| Battery Work time | ≥2000 times measure |
| Save Data | >500 |
| Work Temperature | 23 °F to 104 °F (-5 °C to 40 °C) |
| Save Temperature | 14 °F to 140 °F (-10 °C to 60 °C) |
| Humidity | 0% to 85% (no condensation) |
| Net Weight | 0.66 lb (300 g) |
