Technical Specifications

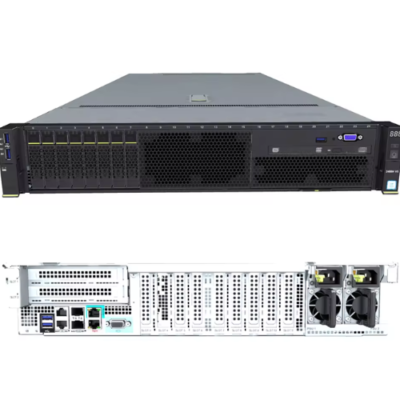

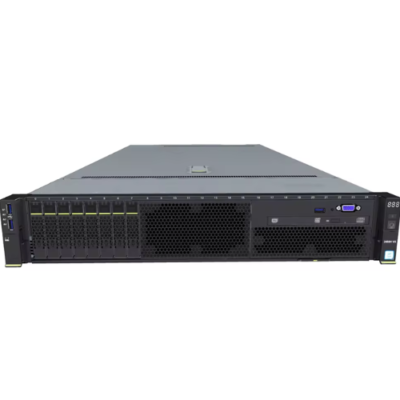

| Form Factor | 2U rack server |
| Processors | 2 or 4 1st Generation Xeon® Scalable processors (5100 or 6100 or 8100 series), up to 205 W 2 or 4 2nd Generation Xeon® Scalable processors (5200 or 6200 or 8200 series), up to 205 W |
| Memory | 48 DDR4 DIMM slots, 2,933 MT per s; up to 24 Optane™ PMem modules (100 series), 2666 MT per s |
| Internal Storage | Supports the following hard drive configuration options: 8 x (6.35 cm) 2.5 – inch SAS or SATA HDDs on the front 25 x (6.35) cm 2.5 – inch SAS or SATA HDDs on the front 24 x (6.35) cm 2.5- inch SAS or SATA HDDs on the front 8 x (6.35) cm 2.5 – inch NVMe SSDs and 16 x 6.35 cm SAS or SATA HDDs on the front 24 x (6.35) cm 2.5 inch NVMe SSDs Supports flash storage: 2 M.2 SSDs |
| RAID Support | Supports RAID 0, 1, 5, 6, 10, 50, or 60 Supports a supercapacitor for cache power-off protection Supports functions such as RAID level migration, drive roaming |
| LOM Network Ports | 2 x GE + 2 x 10 GE ports |
| PCIe Expansion | Up to 11 PCIe 3.0 slots |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Power Supply Units | hot-swappable PSUs, with support for 1+1 redundancy. The following PSUs are supported: 2,000W AC Platinum PSUs 1,500W AC Platinum PSUs 900W AC Platinum PSUs 1,200W DC PSUs |
| Management | BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5 or VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management (Optional) Configured with the Fusion Director management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management |
| Certifications | CE, UL, FCC, CCC, and RoHS |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Operating Temperature | 41°F to 113°F (5°C to 45°C) compliant with ASHRAE Classes A3 and A4 |
| Dimensions (H x W x D) | 3.39 in. x 17.60 in. x 29.45 in (86.1 mm x 447 mm x 748 mm) |
