Overview

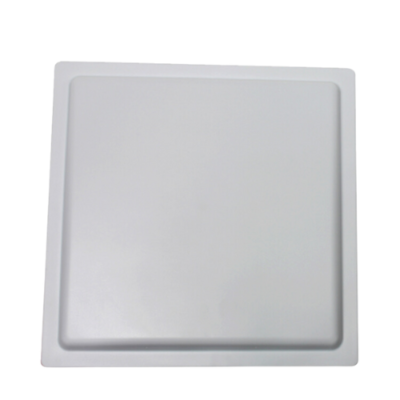

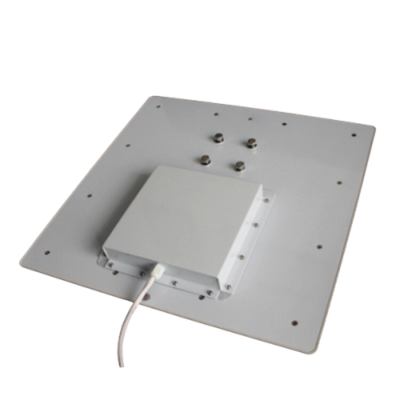

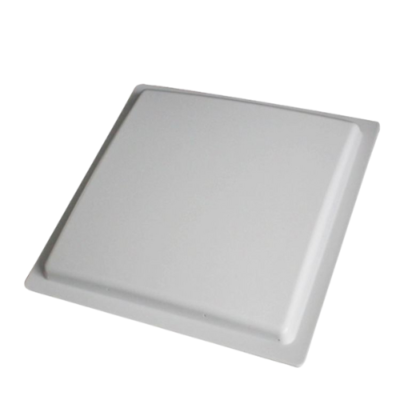

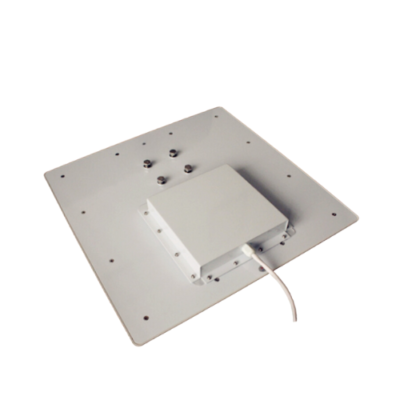

The Inventory Master UHF RFID Fixed Stable Long-Range Reader for Parking Systems. Easy attaching method, screw or welding. FHSS or Fix Frequency transmission. RF output power up to 30 dbm (adjustable). 8 dBi antenna optional with effect distance more than 49.2 ft (15 m). UHF tag designed to meet high durability and easy mounting demand.
Technical Specifications
| Working Frequency | 902 MHz to 928 MHz |
| Protocol | ISO18000-6B, EPC CLASS1 G2 |
| Output Power | Maximum 30 dBm (adjustable) |
| Color | White |
| Interfaces | RS 232, RS 485, Wiegand, (TCP IP, WIFI optional) etc. |
| Operation Mode | FHSS or Fixed Frequency transmission |
| Power Supply | 9 V DC |
| Read Range | 0 ft to 49.21 ft (0 m to 15 m), 8 dBi built-in antenna |
| Dimension | 17.52 in x 17.52 in x 2.56 in (445 mm x 445 mm x 65 mm) |
| Weight | 5.73 lb (2.6 kg) |
