Overview

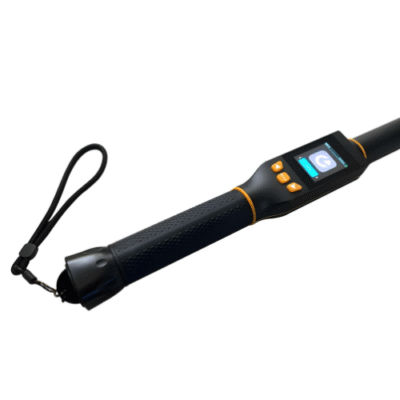

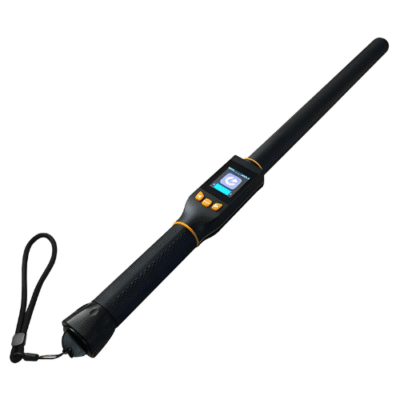

The Inventory Master 134.2Khz Lf HDX FDX-B RFID Animal Ear Tag Reader For Livestock Cattle Cow Sheep Scanner is a brand new animal label card reader without the android system in the industry, which has solved the problem that the front end uses the clickable version of handheld set with the outer mobile phone to connect the to the server for the system integration. The users with the Android system can customize the APP to do the operation of read carder according to the requirements of the needed project, this card reader can operate through the GPS, mobile networking, wifi connection and other operations. The card reader is assembled by the card read board, display panel, battery panel and shell antenna, the card read board is mainly to make the card read operation for the low frequency ear tag in the animal industry, the display board is provided with the control card read board of android core board, the battery panel supplies the power for the display board and the card read board, a serial port communication used between the core board and card read board is stable, reliable, easy developing, we provide the communication protocol, allowing the user to customize the development, according to the project, the APP is freely designed by themselves. The most prominent feature of this card reader is that the antenna of our card reader is rod-shaped, when reading the card, the antenna emits an inductive electromagnetic field in the shape of rugby ball to read the card, there is no need to aim at the ear tag, just need the top of the card reader (antenna position) close to the ear tag to read the card immediately, with convenient and easy operating freely.
Technical specifications
| CPU | MT6735CA (Quad-core Contex -A53 (64Bit)) |
| Memory | 1G LPDDR3 8G eMMC |
| Dominant Frequency | 1.3 GHz |
| Screen | 3.5 in (88.9 mm) 480 x 320 resolution |
| Camera | 5 mega pixels |
| WLAN | 802.11 A, B, G, N, AC wireless network |
| GNSS | GPS or Beidou or GLONASS |
| Interface | USB |
| Read Card Support Protocol | FDX-B, FDX-A |
| Maximum Card Reading Distance | 11.81 in x 13.77 in (300 mm to 350 mm) |
| Working Temperature | 32 °F to 95 °F (0 ℃ to 35 ℃) |
| Storage Temperature | -4 °F to 113 °F (-20 ℃ to 45 ℃) |
| Size | 31.49 in x 3.14 in x 1.57 in (800 mm x 80 mm x 40 mm) |
