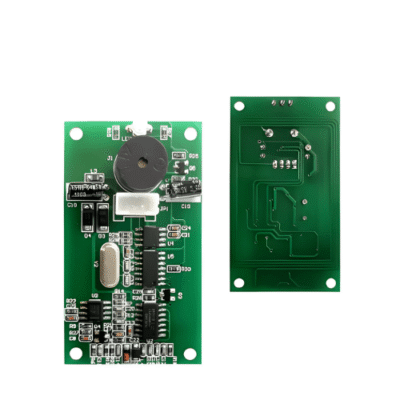

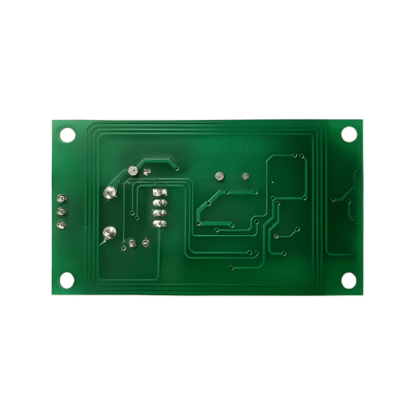

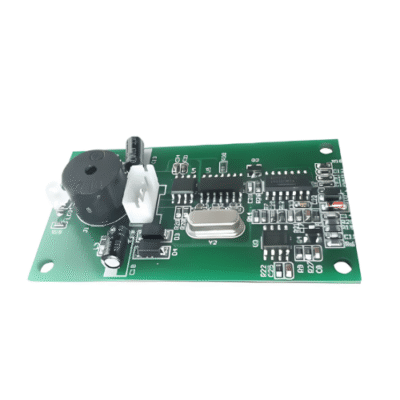

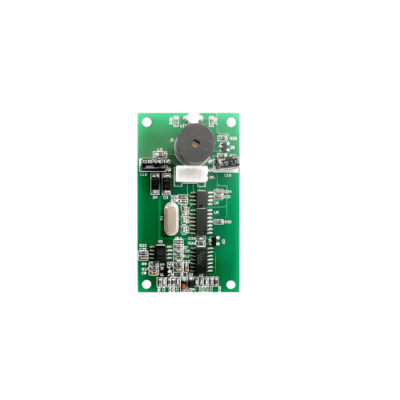

RFID ID Card Frequency Reader Module with Wide Reading Range – The Inventory Master

RFID card reader module with ISO 14443-A protocol, offering a 0-1.96 in reading range, and operating on 3.3V to 5V, ideal for embedded systems.

SKU: TIMLMOD-106 Category:

Technical Specifications

Frequency125 KHz
Reader Interval0.5 s
Card Type125 KHz EM 4100 or TK 4001
Reading Range0 in to 1.96 in (0 mm to 50 mm)
VoltageDC 3.3 V or 5 V
Power SupplyDC 5 V
Working Humidity40 % RH to 90 % RH
ProtocolISO 14443-A
Operating Temperature32 °F to 104 °F (0 °C to 40 °C)
PCB Size1.53 in x 0.78 in
(30.5 mm x 20 mm)
Coil Size2.28 in x 1.31 in
(67 mm x 38 mm)
Weight10.58 oz (300 g)
