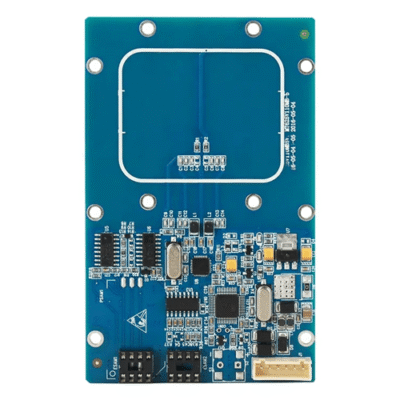

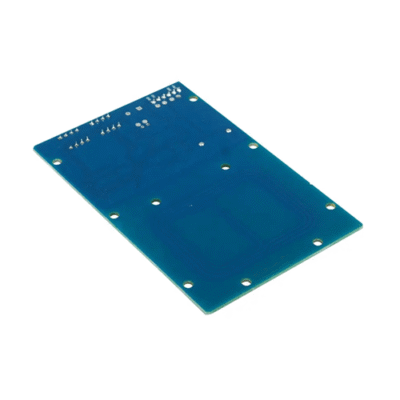

RFID ISO 14443 Smart Card Reader with Dual SIM Slots – The Inventory Master

RFID Smart Reader supports cards with dual SIM slots. Ideal for various applications, it features customizable design and robust performance.

Overview

The Inventory Master Interface Smart Reader is a card reading module, which supports ISO14443 Type A & B contactless cards and ISO 7816 smart cards. It has 2 SIM card slots for flexible PSAM & ESAM configuration. It excels in various fields, including Vehicle Charging Points, Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines and ID Terminals etc.



Features

  • Support contactless IC card (ISO 14443 TYPE A & B)
  • Support PSAM & ESAM card (ISO 7816), optional PSAM and ESAM
  • Customized for charging or financial applications
  • Easy and cost-effective for secondary development
  • Various corresponding and custom design
  • Support city card of different areas, software updated via RS 232 supported
  • Carefully designed antenna size for most installation design
  • Various installation dimensions design
  • Temperature proof



Technical Specifications

Card Reading Distance1.57 in to 3.15 in (4 cm to 8 cm) and 106 kbit
InterfaceRS 232 or TTL (UART)
Baud Rate9600 bps, 38400 bps, 57600 bps, 115200 bps
AntennaPCB Antenna
Frequency13.56 MHz
Communication Speed106 Kbit (212 Kbit & 424 Kbit PPS Commands Optional)
Secondary DevelopmentVC, Linux
Operating SystemWindows 98, Me, 2K, XP, 2003, Vista and Linux
Data Storage Capacity4 Kb
Status DisplayLED indication light for power & communication status, user-controlled buzzer
Power Supply9 V to 12 V, ± 5%
Current≤25 mA (5 V), ≤130 mA (5 V)
Working Temperature-40 °F to +149 °F (-40 °C to +65 °C)
Weight0.07 lb (32 g)
