Overview

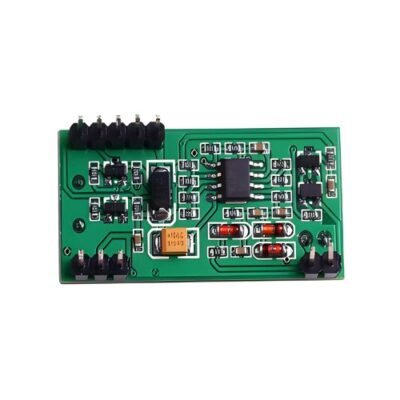

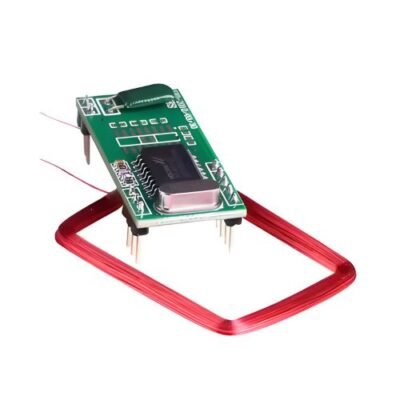

The Inventory Master RFID Reader Module 125 KHz WG 26 TTL RS 232 is a versatile 125KHz read-only module designed for EM 4100 or TK4100 125 KHz cards, facilitating the reading and outputting of CSN card numbers. This product, suitable for embedded integration, offers multiple output formats including Wiegand 26, RS 232, and TTL. Ideal for various applications requiring efficient RFID card reading capabilities.
Features
- 125 KHz Operating Frequency
- Available to be embedded into individual items
- Read CSN card number only
- Different output formats
Technical Specifications
| Frequency | 125 KHz |
| Connection | Metal PIN connection |
| Interface Option | WG 26 or 34, TTL, USB |
| Power Supply | 3.3 V or 5 V |
| Antenna | External, Different size options available |
| Reading Range | 0 into 3.15 in (0 ft to 0.26 ft) |
| Read Or Write | Read UID only |
| Supporting Card | EM 4200 or TK 4100 |
| Protocol | ISO 7815 |
| Operating Temperature | 14 °F to 198 °F (-10 °C to 70 °C) |
| Dimension | 1.54 in x 0.75 in x 0.35 in (39 mm x 19 mm x 9 mm) |
| Single Gross Weight | 0.70 oz (20 g) |
