Overview

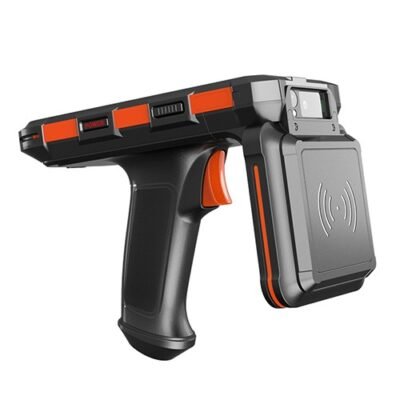

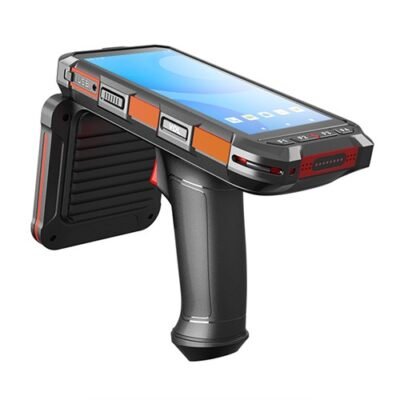

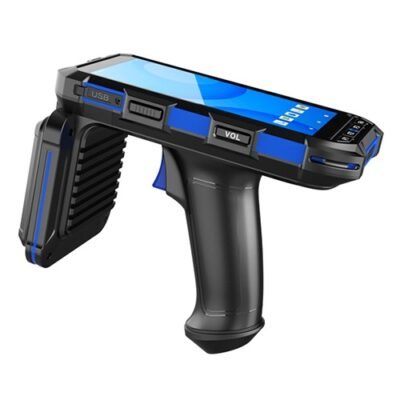

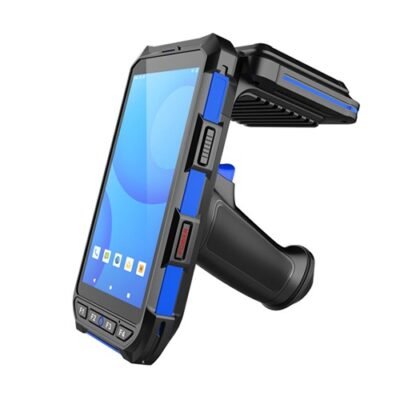

TIMRFID UHF PDA Reader Android portable with pistol grip Hosoton C6100 is an Android rugged PDA with gun grip RFID reader that delivers best-in-class UHF RFID capability. Designed with embedded Impinj E710 / R2000, it enables almost 20m of reading distance outdoors. The RFID PDA terminal also features optional infrared barcode scanning, Octa-Core processor and 7200mAh big battery to perfectly withstands intensive daily tasks, especially in asset management, retails, warehousing, clothing inventory, expressway toll, fleet management, etc
Technical Specifications
| Frequency (UHF) | 13.56Mhz |
| Protocol (HF) | ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Frequency (UHF) | 865~868MHz or 920~925MHz |
| Protocols (UHF) | Protocol EPC C1 GEN2/ISO 18000-6C |
| OS | Android 10 OS |
| CPU | 2.0GHz, MTK Octa-core Processor |
| Memory | 3 GB RAM or 32 GB Flash, 4+64GB |
| Screen Size | 5.5inch, TFT to LCD (720×1440) touch screen with backlight |
| Touch Panel | Gorilla glass III with 5 points Capacitive Touch Screen |
| Buttons / Keypad | 4 keys Programmable function button; dual dedicated scan buttons; volume up or down buttons; on or off button |
| Card Readers (optional) | Contactless Card, Support ISO or IEC 14443 A&B, Mifare, felica card conform to EMV or PBOC PAYPASS standard |
| Camera | Front 5 megapixels, rear 13 megapixels, with flash and auto focus function |
| Bluetooth | Bluetooth .2 |
| WLAN | Wireless LAN 802.11a,b,g,n,ac, 2.4 GHz and 5 GHz Dual Frequency |
| GPS | GPS or BDS or Glonass, error range ± 5m |
| Drop Specification | 1.2m, 1.5m with boot case, MIL to STD 810G |
| Sealing | IP65 |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Storage Temperature | -4°F to 158°F (- 20°C to 70°C) |
| Weight | 13.40 ounces (380g) |
