Overview

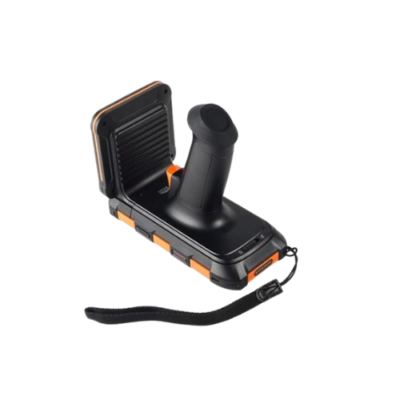

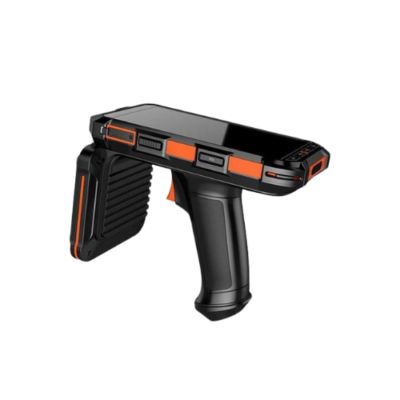

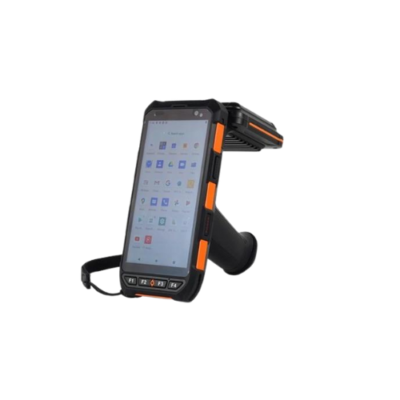

Advanced RFID reader with versatile frequency & protocol support. Android 10.0 OS, robust construction, IP65 sealing, extensive connectivity options.
Technical Specifications
| Frequency | 865 MHz to 868 MHz 902 MHz to 928MHz 920 MHz to 925 MHz |
| Protocol | EPC C1 GEN2/ISO 18000-6C |
| Frequency (RFID HF or NFC) | 13.56 MHZ |
| Protocol (RFID HF or NFC) | ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| R or W Range | 0.79 in to 1.97 in (20 mm to 50 mm) |
| Antenna Gain | Circular antenna (4 dBi) |
| R or W Range | 65.61 ft (20 m) (depend on tags and environment) |
| PERFORMANCE CHARACTERSTICS | |
| CPU | Cortex-A73 2.0 GHz octa-core |
| Operating System | Android 10.0 |
| Storage | 4 GB RAM and 64 GB ROM, MicroSD (max 256 GB expansion) |
| USER ENVIRONMENT | |
| Humidity | 5 % RH to 95 % RH (non-condensing) |
| Drop Specifications | 5 ft (1.5 m) drop to concrete across the operating temperature range |
| Sealing | IP65, IEC compliance |
| ESD | ± 15 kv air discharge, ± 8 kv direct discharge |
| DEVELOPMENT ENVIRONMENT | |
| SDK | Handheld-Wireless Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| DATA COMMUNICATION | |
| WWAN | TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 5,7,8,12, 17, 20; WCDMA (850 MHz or 1900 MHz or 2100 MHz) GSM or GPRS or Edge (850MHz or 900 MHz or 1800 MHz or 1900 MHz) |
| WLAN | 2.4 GHz or 5.0G Hz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| WPAN | Bluetooth v 2.1 + EDR, Bluetooth v 3.0 + HS, Bluetooth v 4.2 |
| GPS | GPS (embedded A-GPS), accuracy of 16.4 ft (5 m) |
| DATA CAPTURE | |
| BARCODE READER(OPTIONAL) | |
| 2D CMOS Imager | Newland NLS-CM 60/ Newland NLS-N1/Honeywell N6703 2D Scan Engine |
| 2D scanner (Symbologist) | PDF417, MicroPDF417, Composite, RSS, TLC-39, Data matrix, QR code, Micro QR code, Aztec, Maxi Code, Postal Codes, US Post Net, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal etc. |
| COLOR CAMERA | |
| Resolution | Rear 13 megapixel, front 5.0 megapixel |
| Lens | Auto-focus with LED flash |
| PSAM SECURITY(OPTIONAL) | |
| Protocol | ISO 7816 |
| Baud Rate | 9600, 19200, 38400,43000, 56000, 57600, 115200 |
| Slot | 2 slots (maximum) |
| ACCESSORIES | |
| Standard | 1 x Power Supply; 1 x Lithium Polymer Battery; 1 x Type-C cable |
| Optional | Cradle |
| PHYSICAL CHARACTERISTICS | |
| Display | Tough 5.5 in (12.7 cm). TFT-LCD (720 x 1440) touch screen with backlight |
| Backlight | LED backlight |
| Expansions | 2 PSAM, 2 SIM, 1 TF |
| Battery | Rechargeable li-ion polymer, 3.8V, 7200mAh |
| Operating Temp. | -4 °F to + 122 °F (-20 °C to + 50 °C) |
| Storage Temp | – 4 °F to + 158 °F (- 20 °C to + 70°C) |
| Dimension | 6.69 in x 3.14 in x 1.10 in (170 mm x 80 mm x 28 mm), ± 0.07 in (±2 mm) |
| Weight | 17.64 oz (500 g) |
